Whirlaway: 190pp Text + Cover with 4" flaps, 4M copies
California Calling: 314pp Text + Cover with 4” flaps, 3M copies
9"(H) x 5.5"(W) (Portrait)
Text: 1c x 1c (Black) on 80gsm Woodfree
Cover: with flaps -- 4c x 0c (process color) + 1/s matt lamination on 210gsm C1S Art Board
Camera From PDF and color proof supplied. Digital proofs for the covers only and 2 sets ozalids for each book.
Perfect bound in 32pp, cover drawn on with 4" flaps.
Packing Packed 48copies in export cartons and palletized
DAP + custom clearance (via ocean) to a non-residential standard warehouse in U.S. Excluding duty, VAT, tax, exam fee, storage, curbside delivery, liftgate and pallet jack.
Dennis the Menace
5.5” x 6.25”
616 pages + cover + board + ends + Jacket
Cover : 120gsm Matte Art Paper, 4C + matte lamination x 0C
Board: 2,100gsm(3mm) grey board
Ends: 150gsm wood free paper, 4C x 1C
Text: 120gsm cream colored wood free, 608 pages 1C x 1C Pantone Black + 8 pages 4C x 4C
Jacket: 120gsm Magic Matching Mayonnaise, 4C + matte lamination x 0C
Sewn, Square back with head bands green and white, and larger unstitched ribbon in bright red. It was the very first ribbon first column, first page of swatch book.
Export cartons on pallets
CIF Seattle

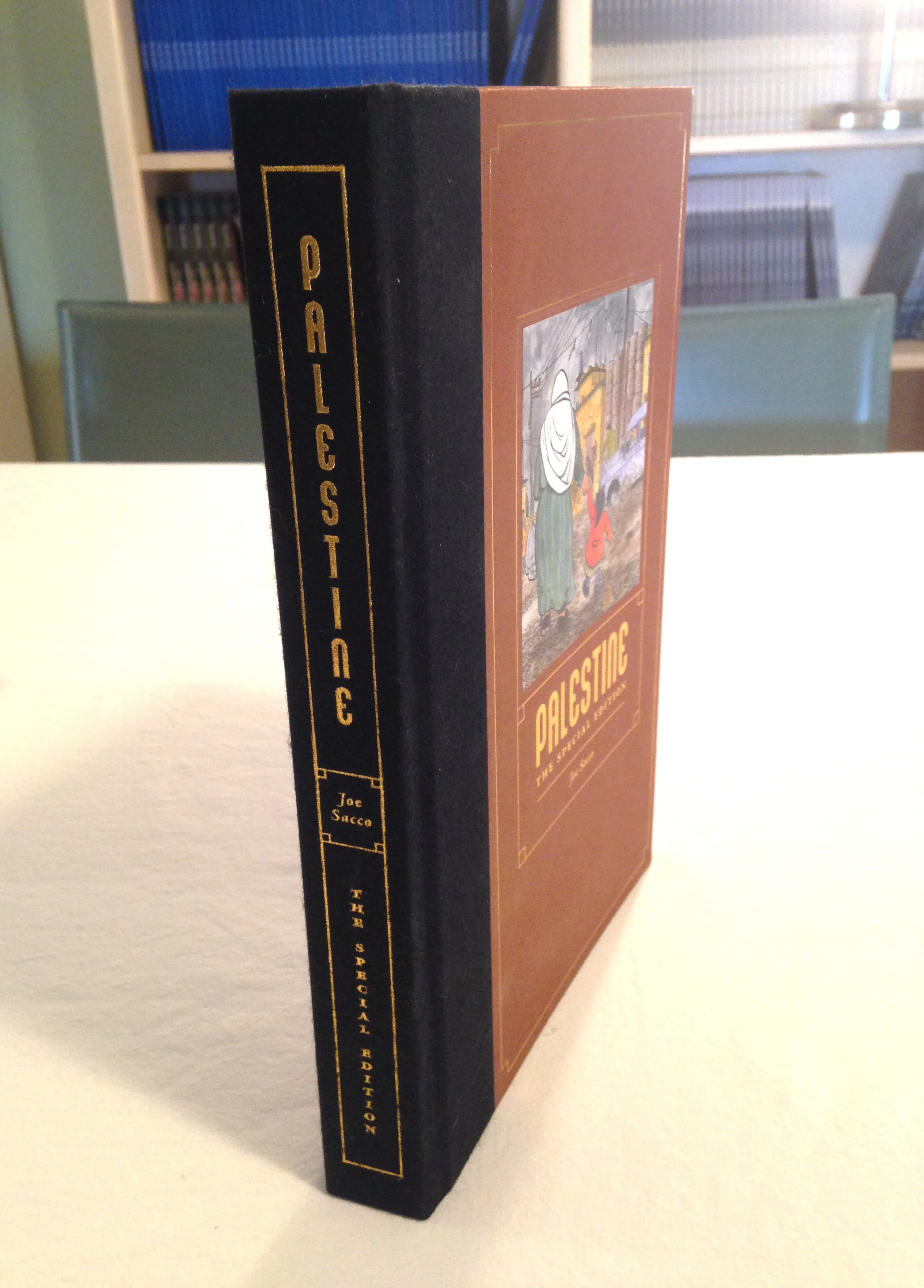

Palestine Special Edition
6.625 x 10" Portrait
320 pp + + Endspapers (8pp) + Case Sides + Case Spine + Case board + Tip On + Belly band ( 3" height) vertical on back cover
First numbers are BOOK pages, second numbers are PRINTED PAGE NUMBERS all print on 100gsm Woodfree as follows:
1-16: 5 color
17-32: 5 color
33-48 (pp. xxxiii, xxiv and pages 1-14): 2 color over 1 color (only page xxxiii, i.e. page 33 of the book, is 2 color)
49-64 (pages 15-30): 2 color over 1 color (only page 25, i.e. page 59 of the book, is color)
65-80 (pages 31-46): black
81-96 (pages 47-62): 2 color over 1 color (only page 51 is color)
97-112 (pages 63-78): black
113-128 (pages 79-94): 2 color over 1 color (only page 79 is color)
129-144 (pages 95-110): black
145-160 (pages 111-126): 2 color over 1 color (only page 115 is color)
161-176 (pages 127-142): black
177-192 (pages 143-158): 2 color over 1 color (only page 143 is color)
193-208 (pages 159-174): black
209-224 (pages 175-190): 2 color over 1 color (only page 179 is color)
225-240 (pages 191-206): black
241-256 (pages 207-222): 2 color over 1 color (only page 215 is color)
257-272 (pages 223-238): black
273-288 (pages 239-254): 2 color over 1 color (only page 251 is color)
289-304 (pages 255-270): black
305-320 (pages 271-286): 2 color over 1 color (only page 286 is color)
Endspapers(8pp) : 1x1c on 140gsm Woodfree
Case Sides : 120 GSM Woodfree, PMS 174 U 1x0c + Gleam Foil No. 26 blocking on front and back (less than 20 sq inch) + blind embossing
Case Spine : Gleam Foil No. 26 on spine on Dynic *Saifu cloth 11 Black
Case board : 3mm Board
Belly Band: 120 gsm Woodfree, 2cx0c 1 PMS + Black
Tip on : 4x0c Gloss Laminated on 128gsm glossy art * subject to stock available
1/4 bound, Section sewn in 16pp, separate ends, square back, Tatsuno Head Band H106 bands, Belly Band
Packed 20 pcs in Export Cartons at size 10.75" X 14.26" X 11.22" , 30 cartons on pallet at size 48." X 40." X 41.16"
CIF Seattle

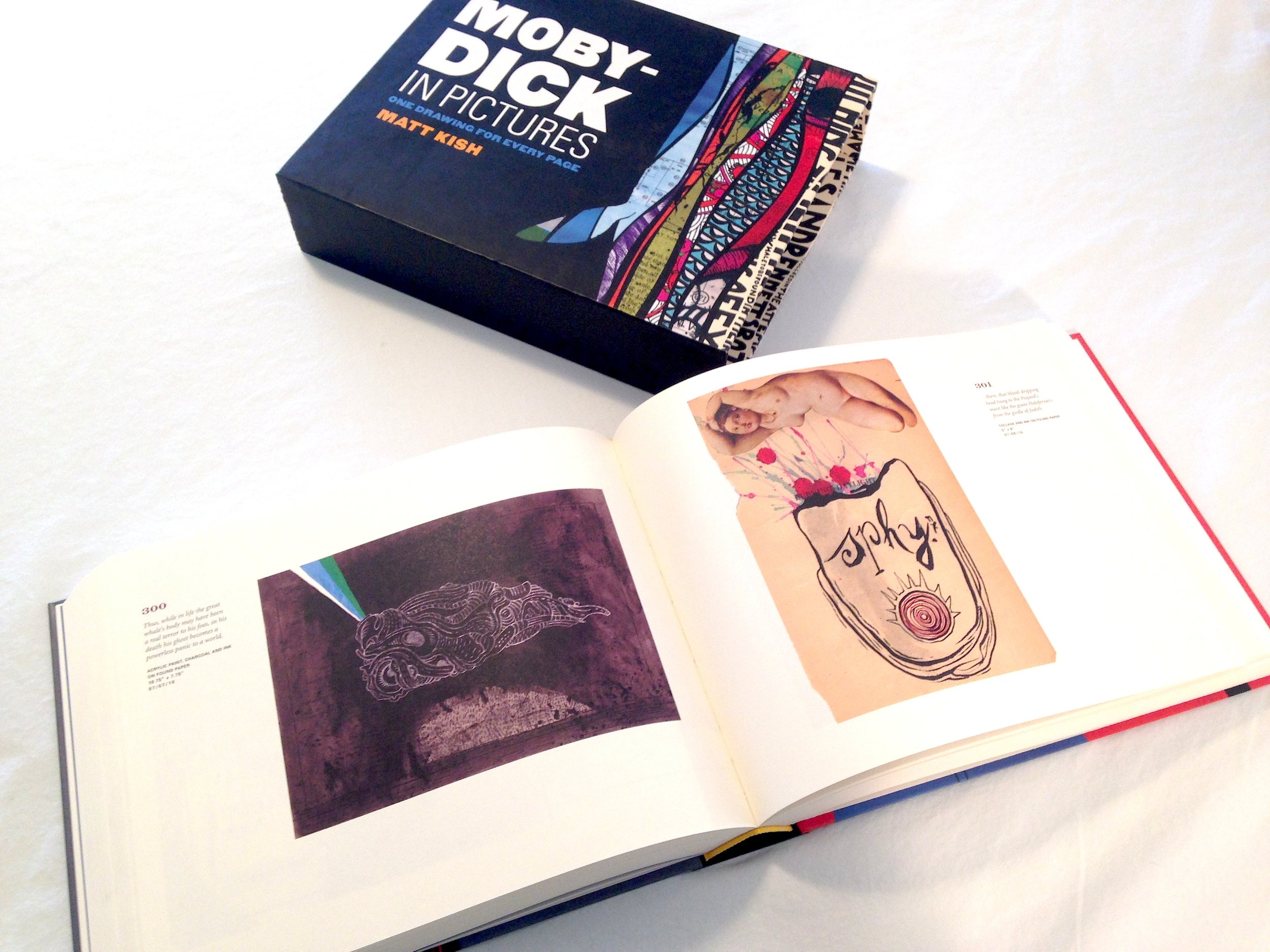

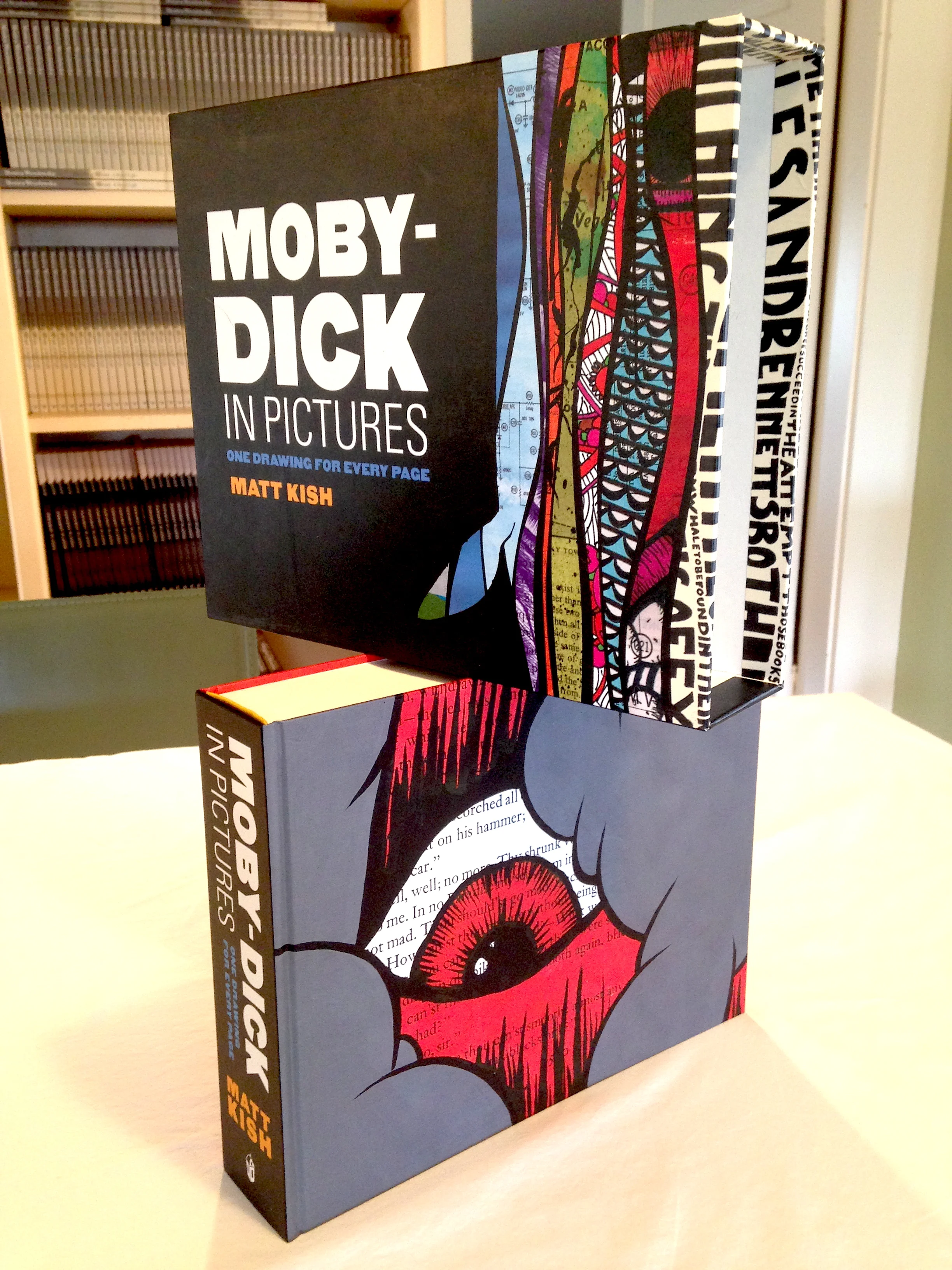

Moby Dick
Hard Cover: 576pp Text + 2x4pp Ends + Case
Soft Cover: 576pp Text + Cover
8"(H) x 10"(W) (Landscape)
Soft Cover: 380gsm C1S art board, 4c x 0c + matte lamination
Text: 130 gsm Yu Long 1.3, 4c x 4c
Ends: 140 gsm Cream Woodfree, no printing
Case: 128gsm glossy art paper, 4c x 0c + matte lamination
Board: 2mm greyboard
HC: Case bound, section sewn in 16pp, separate ends, full cased with PLC over board,square backed.
SC: Limp bound, section sewn in 16pp with cover drawn on, cut flush.
Packing Packed HC - 8 cps / SC -10cps in export carton and palletized
Delivery CIF Seattle

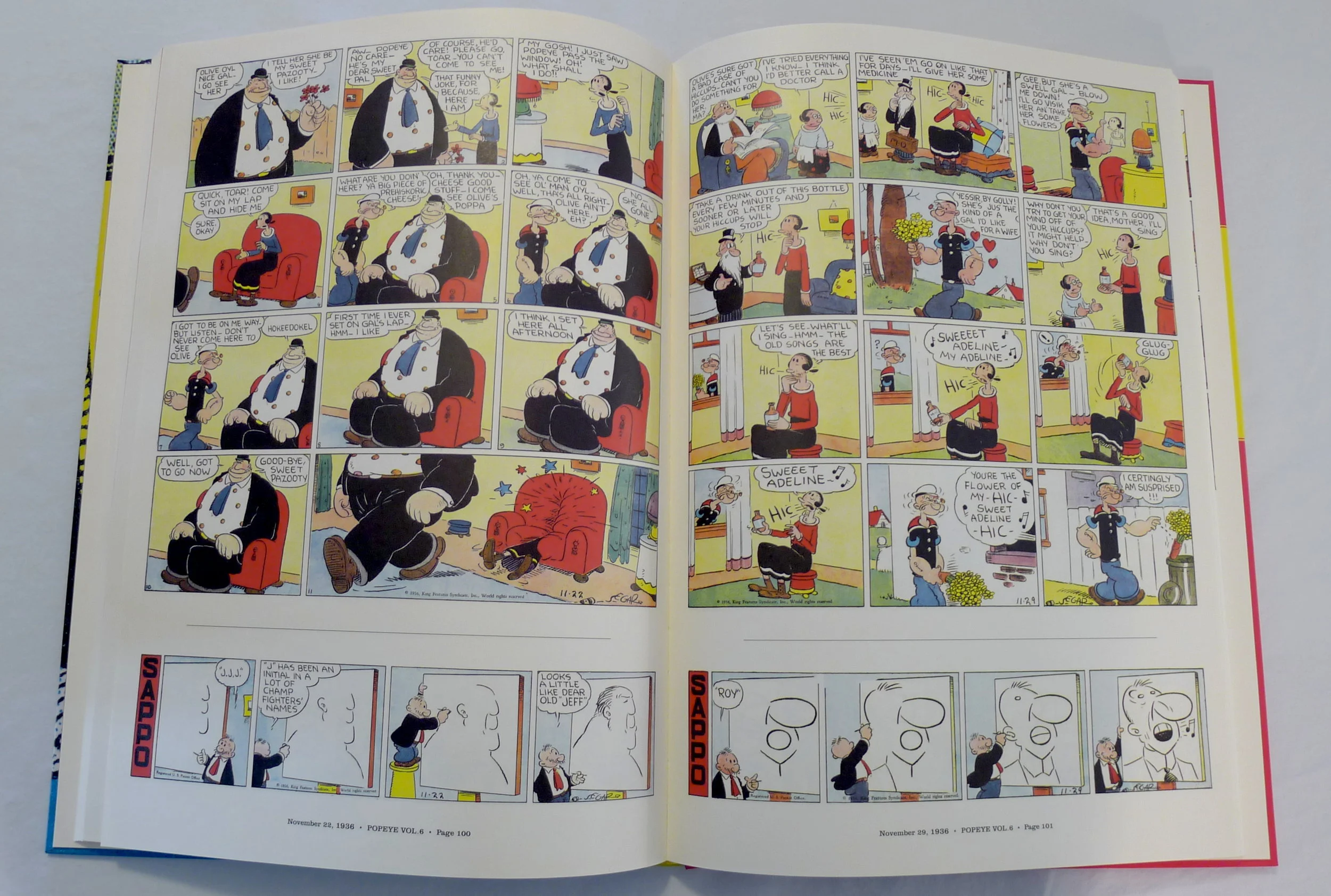

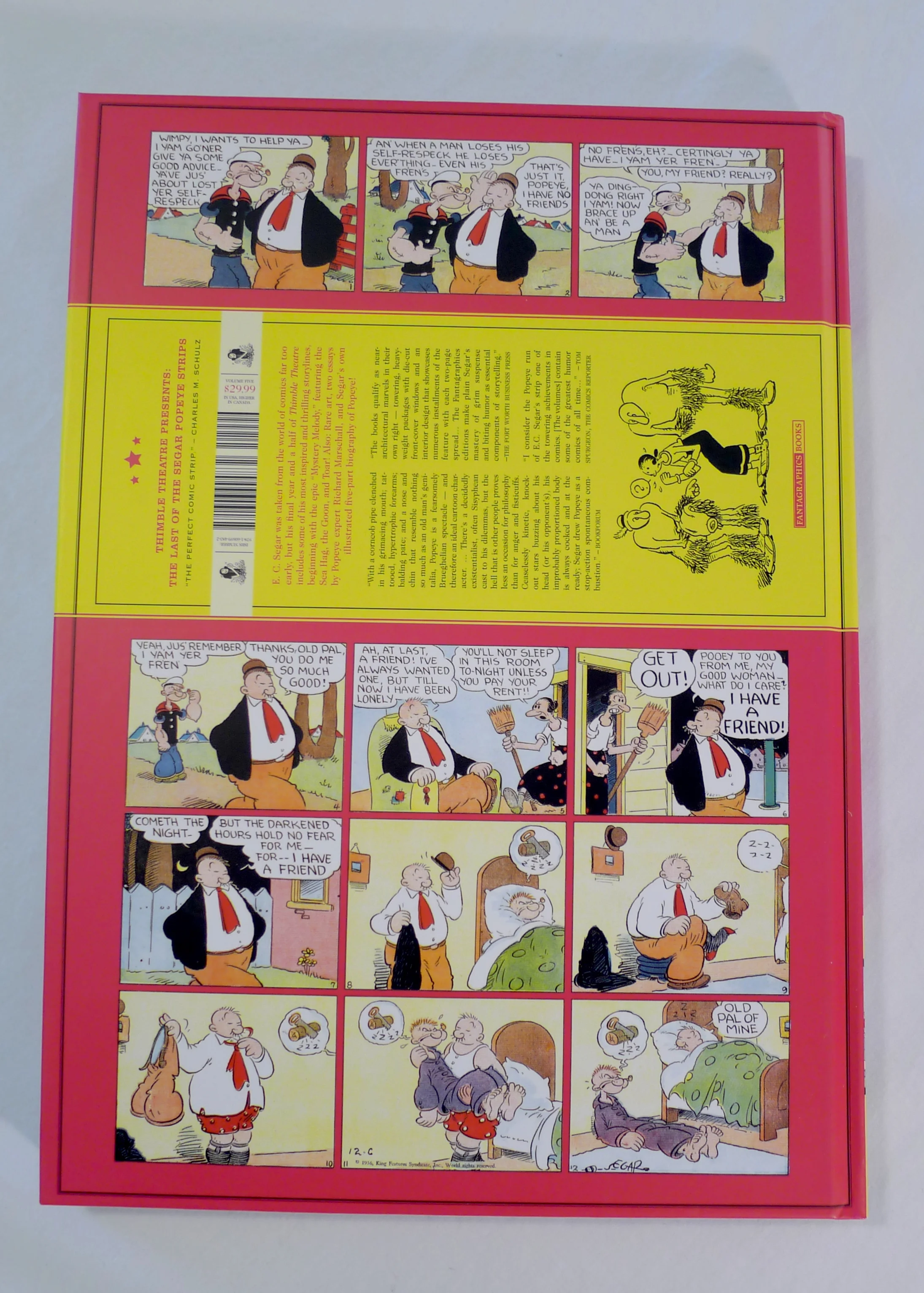

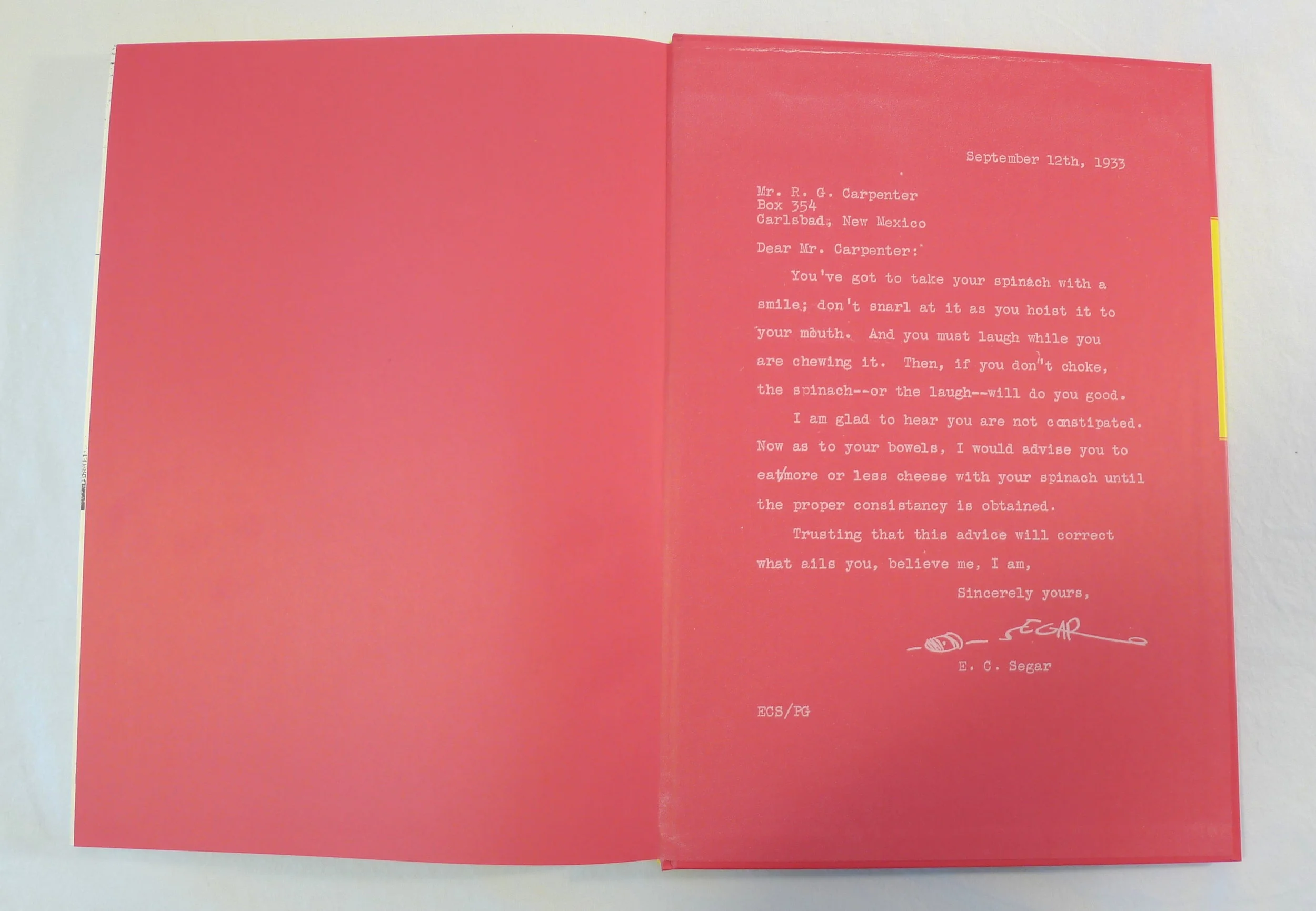

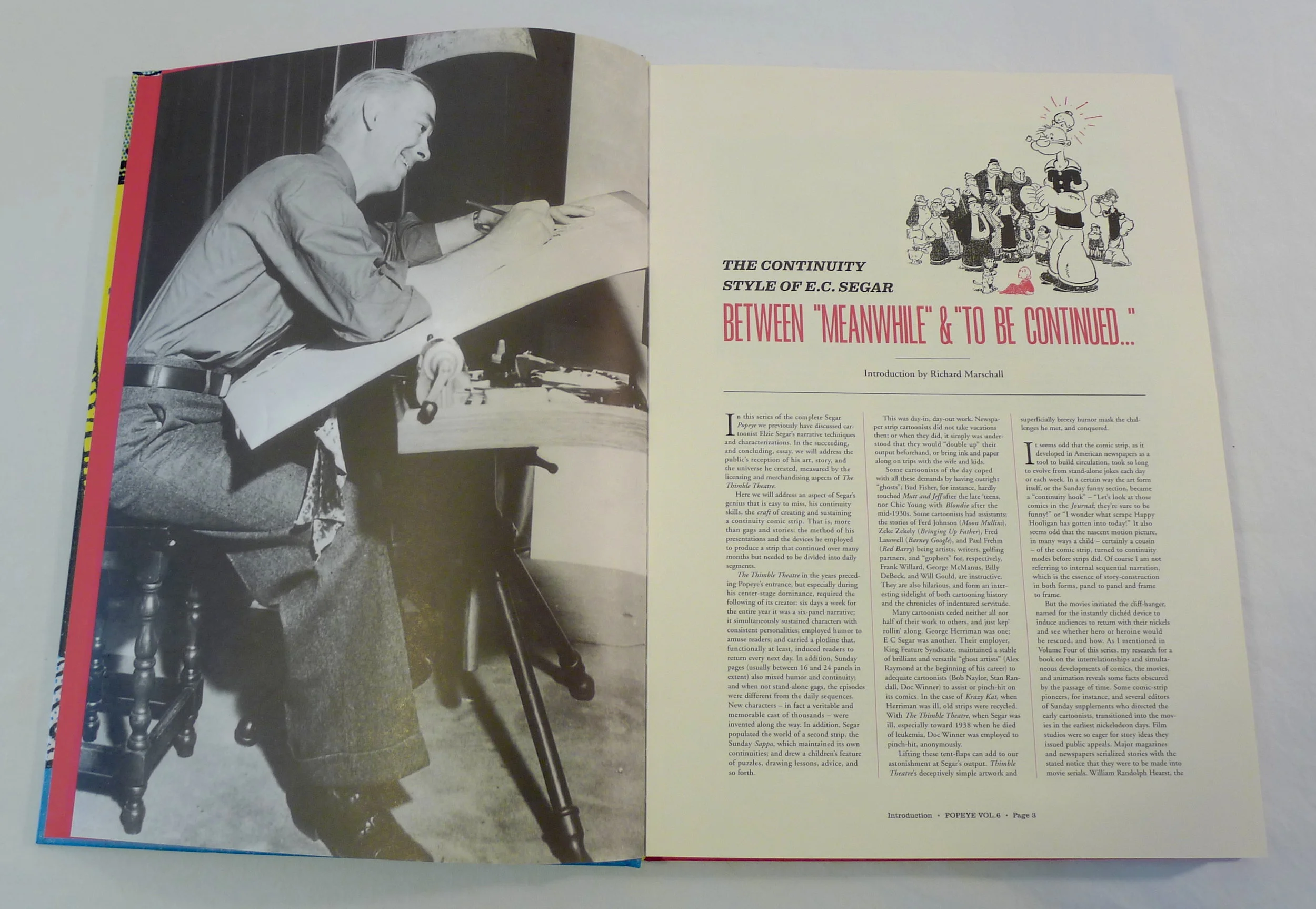

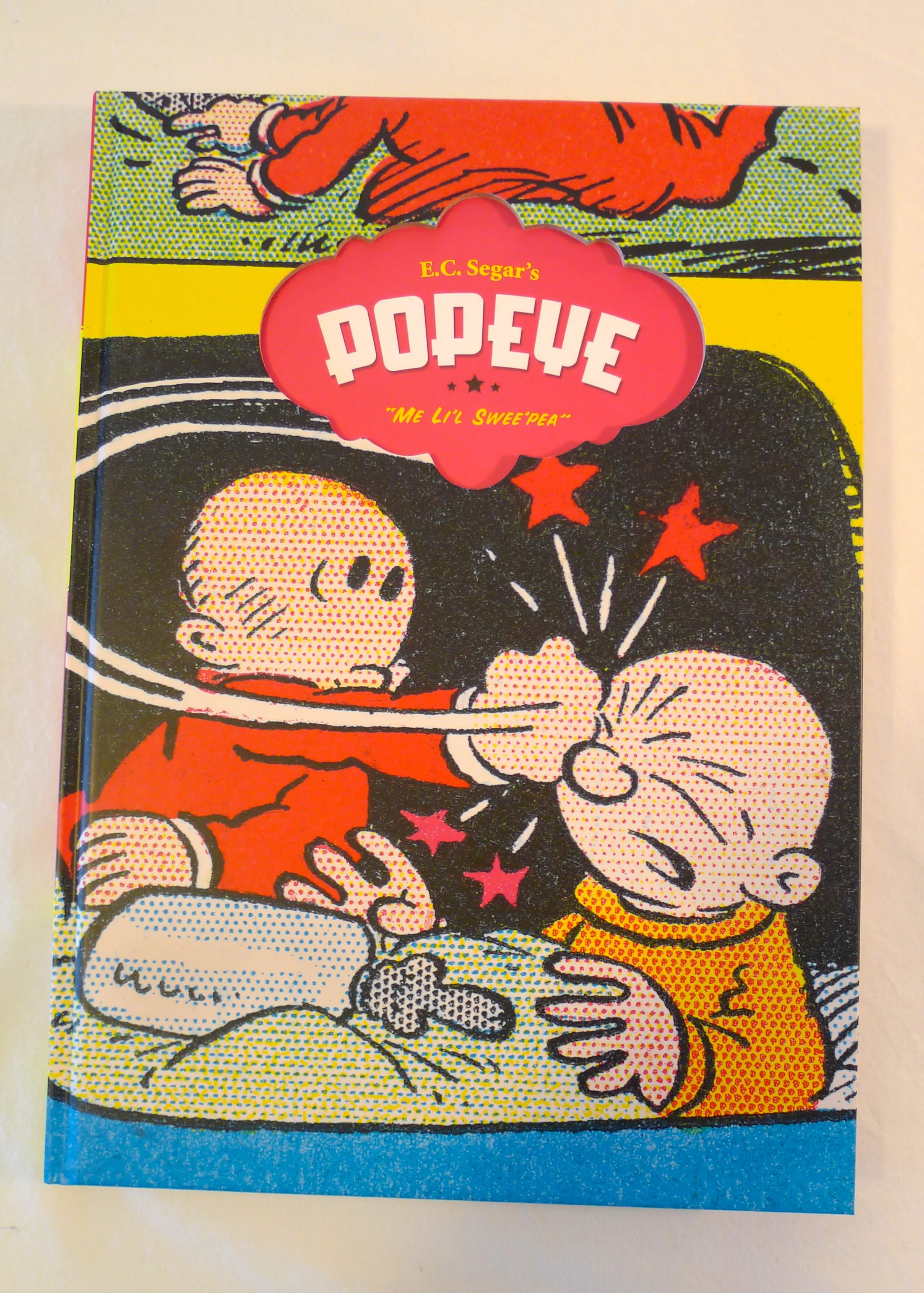

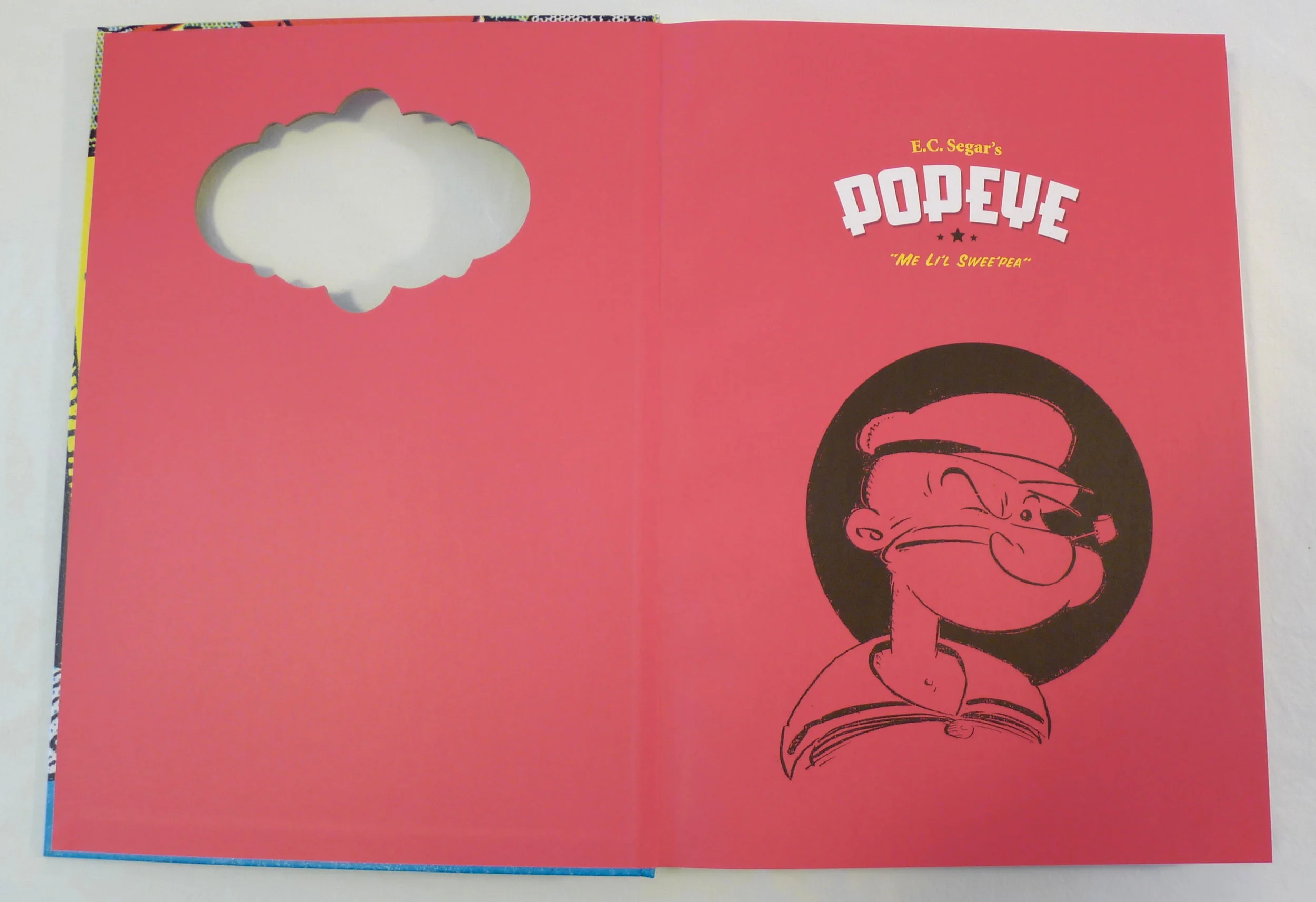

Popeye
14.5” x 10.25” Portrait
192 pages + ends + cover + board
Cover: 128 gsm gloss art paper, 4C + Matte lamination x 0C
Board: 3mm grey board
Ends: 140 gsm wood free paper, 4C x 4C
Text: 100gsm Cream wood free paper, 128p 1C x 1C + 64p 4C x 4C
Sewn in 16p sigs, separate ends, square back case over 3mm board
Export cartons on pallets
CIF Seattle

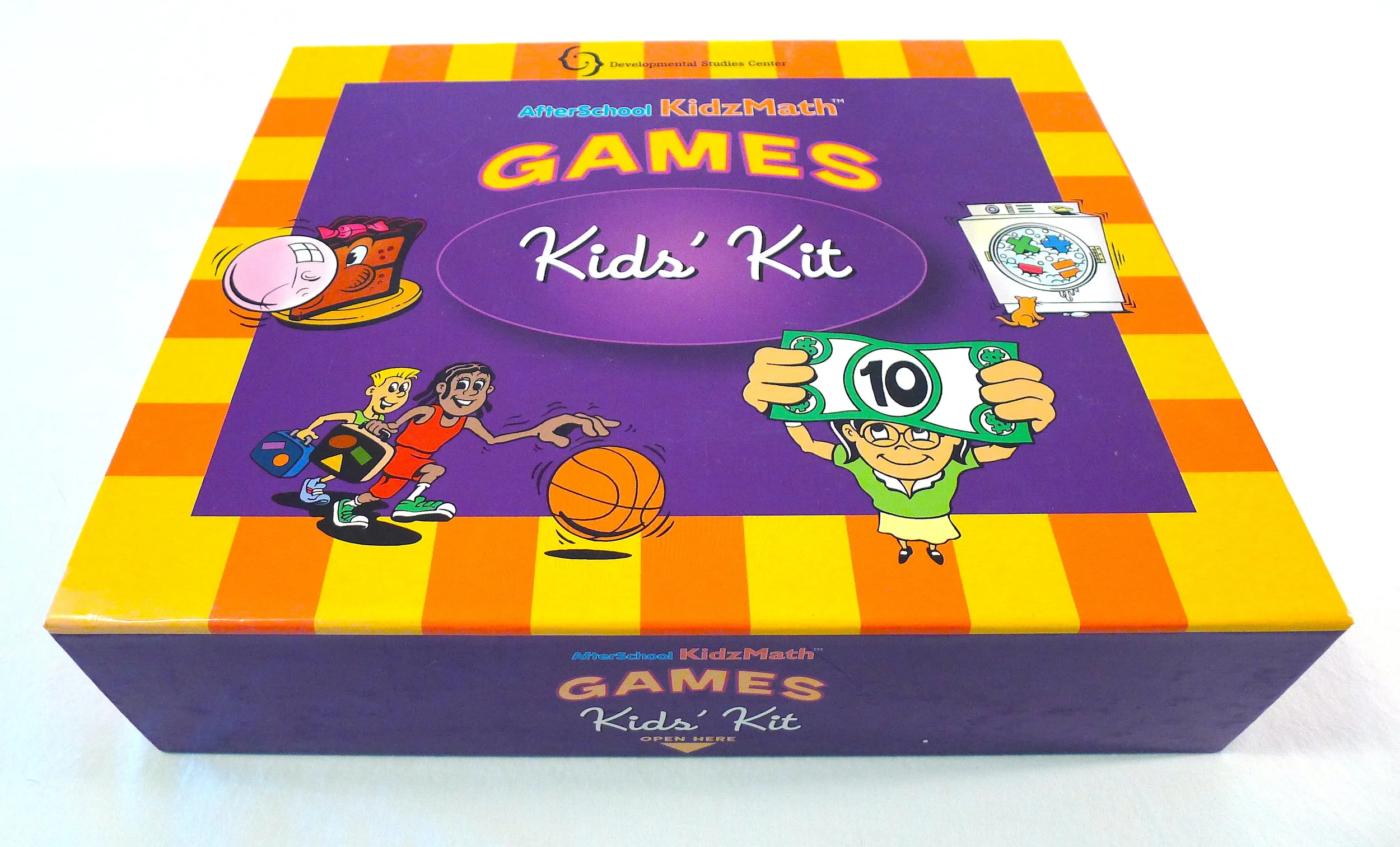

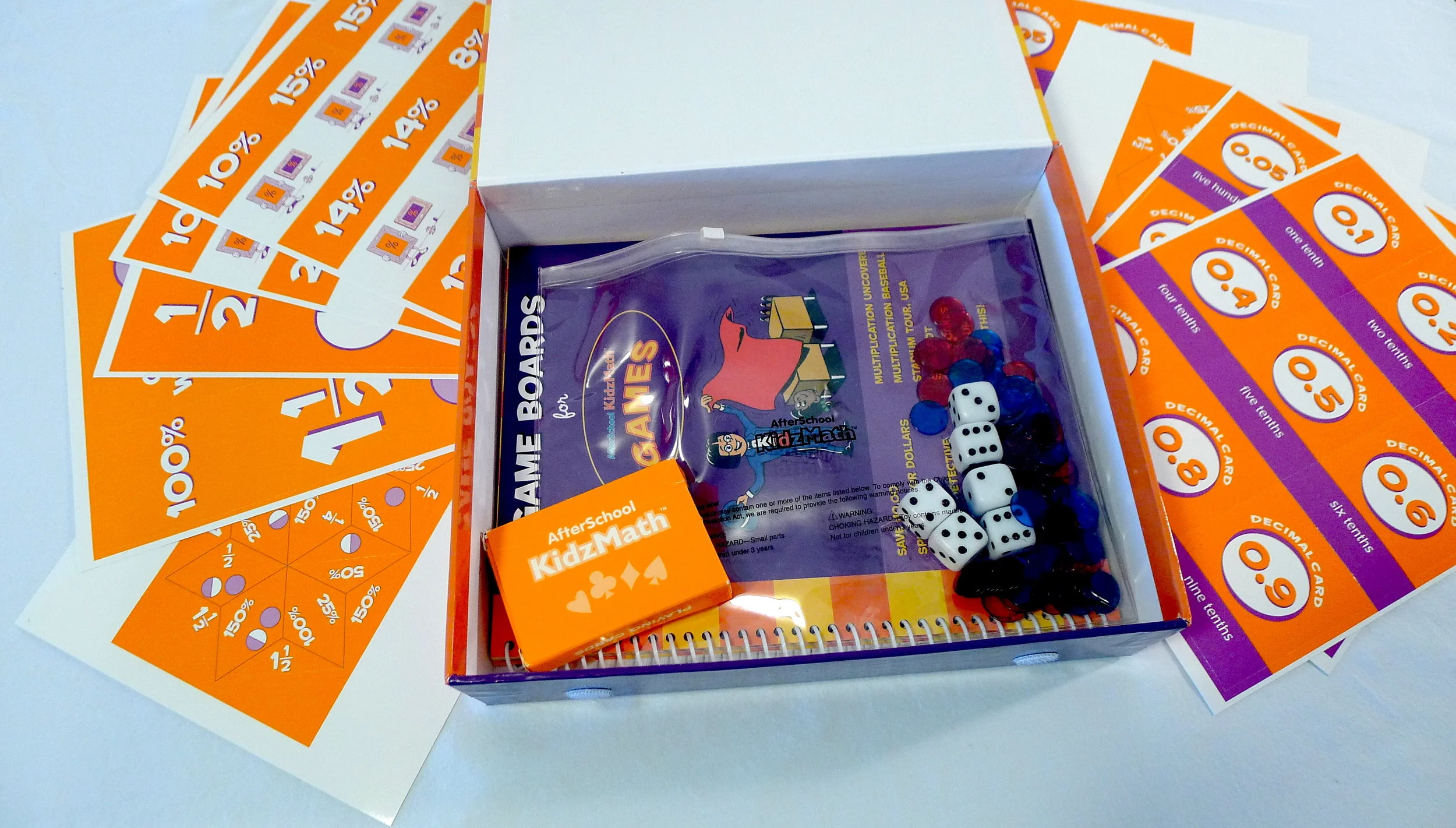

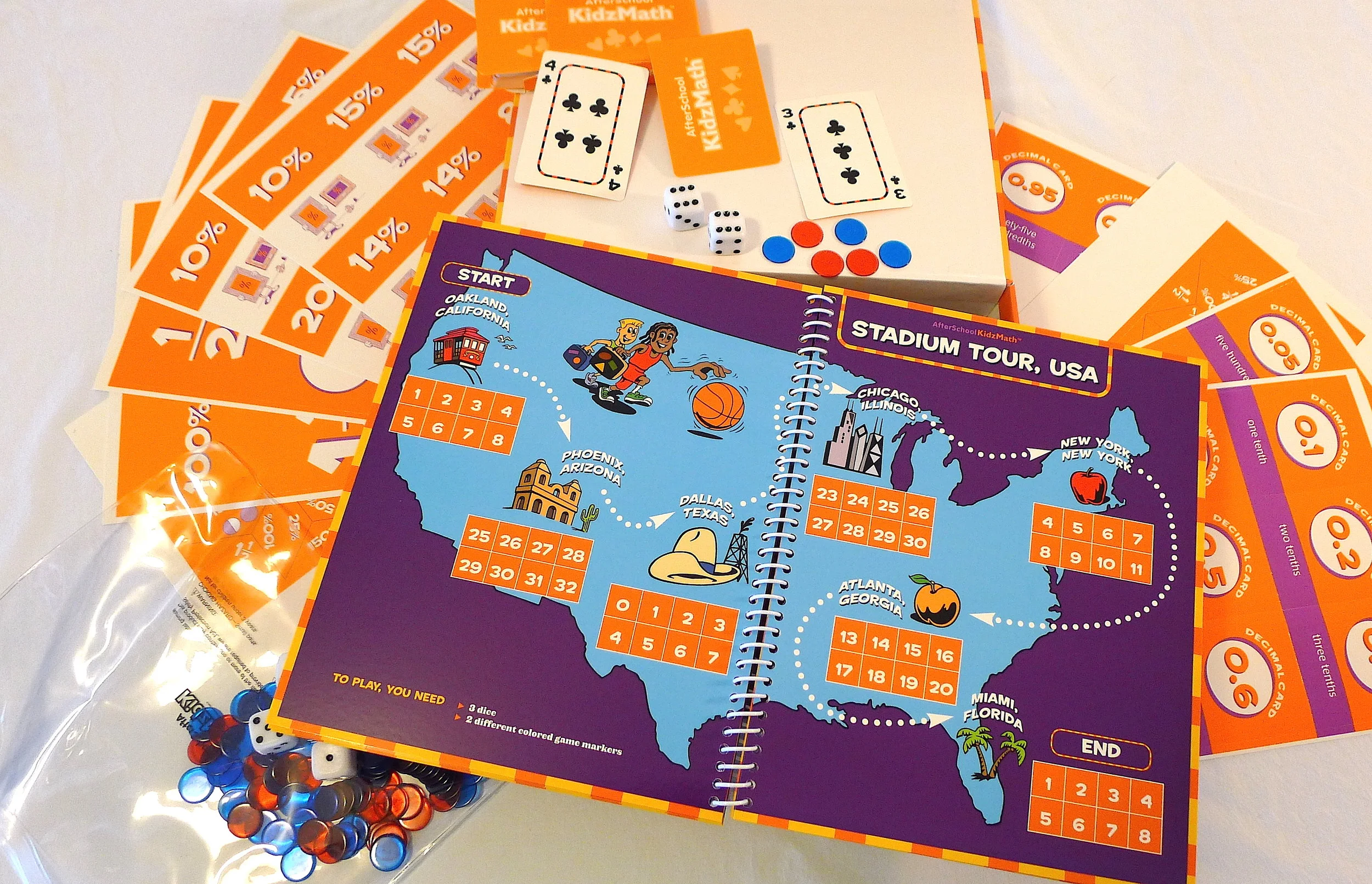

AFTER SCHOOL KIDZ MATH GAME
This project consists of four separate math game boxes: K-2 Kidz box, K-2 Leader's box, 3-6 Kidz box, 3-6 Leader's box, each priced separately below. There will be two separate game sets: K-2 (1 Leader's box, 5 Kidz game boxes) and 3-6 (1 Leader's box, 5 Kidz game boxes). Each set of six boxes will be packed in a fluted, printed cardboard holder and that holder will be placed in a shipper box printed in black.
Fluted holder box specs and pricing as follows:
Fluted box, Leo-E2-008, without box lid and adding punch-out handles, double-walled on both sides and white inside and out:
Size: 19.5"x12.5"x10.5"(deep)
Printing: 2c + press varnish x 0c
Material: 250 gsm greyback + corrugated board (#W3A)
1. After School Kidz Math Games – Student Box (K-2)
Size
Box: 11.25" x 9.25" x 2.5" (interior size)
11.5" x 9.75" x 2.75" (exterior size)
Game book: 8.5'' x 11''
Cards: 2.5'' x 3.5'' (finished size)
Card box: 2.625'' x 3.625'' x 0.7'' (deep)
Playing game sheets: 8.5'' x 11''
Dry erase sheet: 8.5'' x 11''
Zip lock bag: 10.5" x 8.5"/0.18mm thick
Extent: 1 box with hunger lid with 2 velcro closures + 1 game book (16pp + cover) + 1 deck of playing cards (1 card box + 52 cards as a set) + 4 playing game sheets + 1 dry erase sheet + 100 plastic game markers (in 2 standard colors) + 6 dice + 3 dry erase markers (red, green & blue) + zip lock bag printed with a logo and warning.
Printing
Box wrap: 4c + OPP Lamination x 0c
Box liner: Plain
Game book: 4c x 4c + OPP lamination on both sides
Cards: 2c x 1c + UV varnish on both sides
Card box: 2c x 0c
Playing game sheets: 2c x 1c + UV varnish on both sides
Dry erase sheet: 1c x 0c + UV varnish on both sides
Zip lock bag: Clear PVC printed with customer logo and warning label
Material
Box wrap: 128gsm Glossy artpaper over 3mm board
Box liner: 120gsm woodfree
Velcro Closure: Two 3/4" diameter white velcro closures (Production lead-time 15 days)
Game book: 24pt. C2S artboard
Cards: 10pt. C2S artboard
Card box: 18pt. SBS artboard
Playing game sheets: 10pt. C2S artboard
Dry erase sheet: 24pt. C2S artboard
Plastic game markers: PS material, 18mm diameter (Two standard colors, 50 markers/color, Production leadtime 20 days)
Dice: GPPS material, white dice with black dots, 20mm width for each side (Production leadtime 40 days)
Dry erase markers: Item No. AB3382, size is 123 length x 13mm diameter
(3 standard colors: red, green & blue. Product leadtime 40 days and with MOQ 5,000 pieces)
Zip lock bag: 10.5" x 8.5"/0.18mm thick, Clear PVC with 1c logo and warning printed (Product leadtime 30 days and w/MOQ 25,000 pieces)
Binding
Box: Box making. The lid has 2 velcro closures on the front flap.
Game book: Spiral (3/8'' diameter) binding along 11'' edge and then insert into the box.
Cards: Trimmed to size and rounded corners and insert into card box.
Playing game sheets: Trimmed to size and perforated.
Assembly: All items, excluding those sized 8 1/2 x 11, to be placed inside the zip lock bag.
Collect and insert all items into Math Game Box.
Packing: Shipper: (2-ply carton) 1 Box set (6 boxes) / carton
Carton size: 19.5"x12"x9.25"
Carton weight: 13 Kg/ carton
32 cartons per pallet size: 48" x 40"
2. New K-2 Box (Leader Box)
Size:
Box: 11.25" x 9.25" x 2.5" (interior size)
11.5" x 9.75" x 2.75" (exterior size)
Leader's Guide: 8-1/2'' x 11''
Sticker sheet: 4.75” x 6.625” (sheet size)
18mm individual sticker size (each sheet has 35 stickers)
Write-on cards: 8-1/2'' x 11''
Playing game sheets: 8-1/2'' x 11''
Zip lock bag: 10.5" x 8.5"/0.18mm thick
Extent:
1 box with hunger lid with 2 velcro closures + 1 Leader’s Guide (192pp + cover) + 2 sticker sheets + 32 write-on cards + 8 playing game sheets + 20 marbles + 1 piece of Yarn + 6 dice + 1 zip lock bag + 3 dry erase markers (red, green & blue)
Printing:
Box wrap: 4c + OPP Lamination x 0c
Box liner: Plain
Leader's Guide: text - 1c x 1c
cover - 4c + UV varnish x 0c
Sticker sheet: Plain
Write-on cards: plain with UV varnish on both sides
Playing game sheets: 2c x 1c + UV varnish on both sides
Zip lock bag: Clear PVC printed with a warning label
Material:
Box wrap: 128gsm Glossy artpaper over 3mm board
Box liner: 120gsm woodfree
Velcro Closure: Two 3/4" diameter velcro closures (Production lead-time 15 days)
Leader's Guide: text - 100gsm woodfree
cover - 16pt. SBS artboard
Sticker sheet: 85gsm woodfree surface removable sticker
Write-on cards: 10pt. C2S artboard
Playing game sheets: 10pt. C2S artboard
Dice: GPPS material, white dice with black dots, 20mm width for each side (Production leadtime 40 days)
Yarn: Red Color & 4mm dia. x 14 yards (Product leadtime 35 days & color based on stock color of supplier)
Marble: 15mm, three colors (Product leadtime 40 days)
Zip lock bag: 10.5" x 8.5"/0.18mm thick, Clear PVC with 1c logo and warning lable (Product leadtime 30 days and w/MOQ 25,000 pieces)
Dry erase markers: Item No. AB3382, size is 123 length x 13mm diameter
(3 standard colors: red, green & blue. Product leadtime 40 days and with MOQ 5,000 pieces)
Binding:
Box: Box making and the box lid has 2 velcro closures on the front flap.
Leader's Guide: Spiral (11/16'' diameter) binding along 11'' edge and then insert into the box.
Sticker: Semi-diecut each sticker sheet into 35 pieces, each piece 18mm diameter (2 sticker sheets per box)
Write-on cards: Trimmed to size and put into box.
Playing game sheets: Trimmed to size and perforated.
Assembly: All items, excluding those sized 8 1/2 x 11, to be placed inside the zip lock bag.
Collect and insert all items into box.
Packing: Shipper: (2-ply carton) 1 Box set (6 boxes) / carton
Carton size: 19.5"x12"x9.25"
Carton weight: 13 Kg/ carton
32 cartons per pallet size: 48" x 40"
3. After School KidzMath Games – Student Box (3-6)
Size
Box: 11.25" x 9.25" x 2.5" (interior size)
11.5" x 9.75" x 2.75" (exterior size)
Spinner: 2'' (L) x 1/2'' (W) x 1mm thickness
Spinner slip: 130 x 130 x 5mm deep
Game book: 8.5'' x 11''
Cards: 2.5” x 3.5” (finished size)
Card box: 2.625” x 3.625” x 0.7'' (deep)
Spinner game sheets: 5'' x 5''
Playing game sheets: 8.5'' x 11''
Dry erase sheet: 8.5'' x 11''
Zip lock bag: 10.5" x 8.5"/0.18mm thick
Extent: 1 box with hunger lid with velcro closure + 1 game book (24pp + cover) + 1 deck of playing cards (1 card box + 52 cards as a set) + 1 spinner rivet on spinner slip by a rivet + 6 spinner game sheets + 11 playing game sheets + 1 dry erase sheet + 100 plastic game markers + 6 dice + 3 dry erase markers (red, green & blue) + 1 zip lock bag
Printing:
Box wrap: 4c + OPP Lamination x 0c
Box liner: Plain
Game book: 4c x 4c + OPP lamination on both sides
Cards: 2c x 1c + UV varnish on both sides
Card box: 2cx0c
Spinner game sheets: 4c x 4c + OPP lamination on both sides
Playing game sheets: 2c x 1c + UV varnish on both sides
Dry erase sheet: 1c x 0c + UV varnish on both sides
Zip lock bag: Clear PVC printed with a warning label (see extra cost for full specifications)
Material
Box wrap: 128gsm Glossy artpaper over 3mm board
Box liner: 120gsm woodfree
Velcro Closure: 3/4" diameter velcro closure (2 pieces)
Spinner: 1.0mm thickness black plastic spinner (Production leadtime 25 days)
Spinner slip: 0.5mm thickness Clear Transparent PP and slip with thumb cut-out on open edge (Production leadtime 30 days)
Rivet: Steel material, black (Product lead-time 15 days)
Game book: 24pt. C2S artboard
Cards: 10pt. C2S artboard
Card box: 18pt. SBS artboard
Spinner game sheets: 10pt. C2S artboard
Playing game sheets: 10pt. C2S artboard
Dry erase sheet: 24pt. C2S artboard
Plastic game markers: PS material, 18mm diameter (Two standard colors, 50 markers/color, Production leadtime 20 days)
Dice: GPPS material, white dice with black dots, 20mm width for each side (Production leadtime 40 days)
Dry erase markers: Item No. AB3382, size is 123 length x 13mm diameter
(3 standard colors: red, green & blue. Product leadtime 40 days and with MOQ 5,000 pieces)
Zip lock bag: 10.5" x 8.5"/0.18mm thick, Clear PVC with 1c logo and warning printed (Product leadtime 30 days and w/MOQ 25,000 pieces)
Binding
Box: Box making. The lid has 2 velcro closures on the front flap.
Game book: Spiral (1/2'' diameter) binding along 11'' edge and then insert into the box.
Cards: Trimmed to size and rounded corners and insert into card box.
Spinner game sheets: Trimmed to size and no binding and inserted into spinner slip
Playing game sheets: Trimmed to size and Perforated.
Assembly: All items, excluding those sized 8 1/2 x 11, to be placed inside the zip lock bag.
Collect and insert all items into box.
Packing: Shipper: (2-ply carton) 1 Box set (6 boxes) / carton
Carton size: 19.5"x12"x9.25"
Carton weight: 13 Kg/ carton
32 cartons per pallet size: 48" x 40"
4. New 3-6 Box (Leader Box)
Size:
Box: 11.25" x 9.25" x 2.5" (interior size)
11.5" x 9.75" x 2.75" (exterior size)
Leader's Guide: 8-1/2'' x 11''
Poster: 17'' x 22'' folded to 8-1/2'' x 11''
C2S Game board: 11'' x 17'' folded to 8-1/2'' x 11'' with printing on side folded in.
Dry erase sheet: 8-1/2'' x 11''
Sticker sheet: 4.75” x 6.625” (sheet size)
18mm individual sticker size (each sheet has 35 stickers)
Zip lock bag: 10.5" x 8.5"/0.18mm thick
Extent: 1 box with hunger lid with 2 velcro closures + 1 Leader's Guide (256pp + cover) + 5 posters + 5 game boards + 1 dry erase sheet + 2 sticker sheets + 1 permanent marker + 1 beach ball + 3 dry erase markers(red, green & blue) + 10 dotted dice + 1 zip lock bag
Printing:
Box wrap: 4c + OPP Lamination x 0c
Box liner/Dividers: Plain
Game book: text - 1c x 1c
cover - 4c + UV varnish x 0c
Poster: 1c + Matt lamination x 0c
Game board: 1c + UV varnish x 0c + UV varnish with printing on side folded in.
Dry erase sheet: 1c x 0c + UV varnish on both sides
Sticker sheets: Plain
Zip lock bag: Clear PVC printed with 1c logo and warning
Material
Box wrap: 128gsm Glossy artpaper over 3mm board
Box liner: 120gsm woodfree
Velcro Closure: 3/4" diameter velcro closure
Game book: text - 100gsm woodfree
cover - 16pt. SBS artboard cover
Poster: 157gsm glossy artpaper
Game board: 14 pt. C2S artboard
Dry erase sheet: 24pt. C2S artboard
Sticker sheets: 85gsm woodfree surface removable sticker
Beach ball: 10'' diameter and made in colored PVC (supplier's standard colors: red, yellow, cambridge blue, coffee, bottle green, sapphinre blue, orange & olive drab (Product leadtime 40 days & valid for 30 days. If out of standard color, the MOQ is 30,000 pieces)
Permanent marker: Item No. WBM-01 & the in color black. Size is 140mm (L) x 12.6mm dia. (Product leadtime 40 days & valid for 30 days)
Dice: GPPS material, white dice with black dots, 20mm width for each side (Production leadtime 40 days)
Dry erase markers: Item No. AB3382, size is 123 length x 13mm diameter
(3 standard colors: red, green & blue. Product leadtime 40 days and with MOQ 5,000 pieces)
Zip lock bag: 10.5" x 8.5"/0.18mm thick, Clear PVC with 1c logo and warning printed (Product leadtime 30 days and w/MOQ 25,000 pieces)
Binding
Box: Box making and the box lid has 2 velcro closures on the front flap.
Leader's Guide: Spiral (7/8'' diameter) binding along 11'' edge and then insert into the box.
Poster: Trimmed and folded to size. *poster should be folded printed side in
Sticker: Semi-diecut each sticker sheet into 35 pieces, each piece 18mm diameter (2 sticker sheets per box)
Game Board: 11”x17” folded and scored to 81/2” x 11”, printed side in.
Assembly: All items, excluding those sized 8 1/2 x 11, to be placed inside the zip lock bag.
Collect and insert all items into Math Game Box.
Packing: Shipper: (2-ply carton) 1 Box set (6 boxes) / carton
Carton size: 19.5"x12"x9.25"
Carton weight: 13 Kg/ carton
32 cartons per pallet size: 48" x 40"
PORTAL WALL CALENDARS
12x12 or 11x 14
24 page text + 4 page cover
Cover: 12 pt. Cornwall Gloss Recycled C2S Cover, 4cx4c + UV Coating 1 side
Text: 100# Interlake Recycled Multifect Gloss Text, 4cx4c
Fold, collate, saddle stitch, punch 3/16” hole, insert 27 pt. chipboard stiffener in center spread, shrink wrap individually and bulk pack, palletized
MTV DARIA POSTERS
12 x 24
Text: 100# Interlake Recycled Multifect Gloss Text, 4cx0c
Inserted and stitched into each CMW 224 MTV Daria 12x12 Wall Calendar
OVERSIZED WALL CALENDARS
18 x 24 Vertical
8 leaves (16 pages) page text + front and back cover
Film provided
8 pt Cornwall Gloss Recycled C2S, 4cx0c + UV on OFC & OBC only
Cut to shingle sheets, diecut thumb cut on binding edge for calendar hanger, punch on binding edge for double wire-o, collate, attach double wire-o with hanger (black elements) insert chipboard stiffener, and pack
Wallace & Gromit to die cut each page
25 copies per carton
MINI CALENDARS
7x7
24 page text + 4 page cover
Complete composite press positives/negatives in page format (16 pieces per cover per calendar and 96 pieces for pages for calendar). Color proofs supplied by Portal.
Cover: 8 pt. Cornwall Gloss Recycled C2S Cover, 4cx4c + UV Coating 1 side
Text: 70# Interlake Recycled Multifect Gloss Text, 4cx4c
Fold, collate, saddle stitch, punch 3/16” hole, insert 18 pt. chipboard stiffener in center spread, shrink wrap individually and bulk pack, palletized

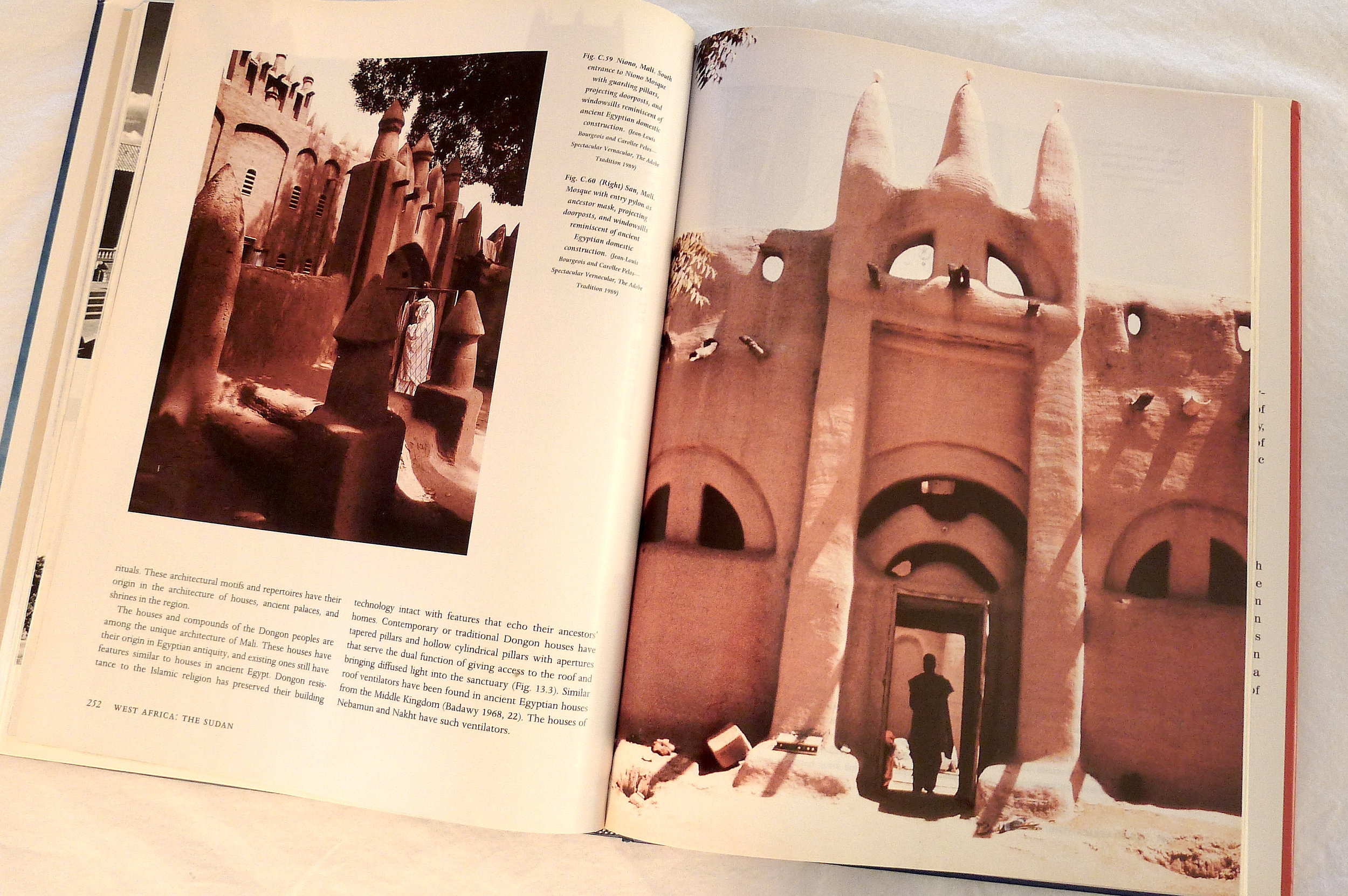

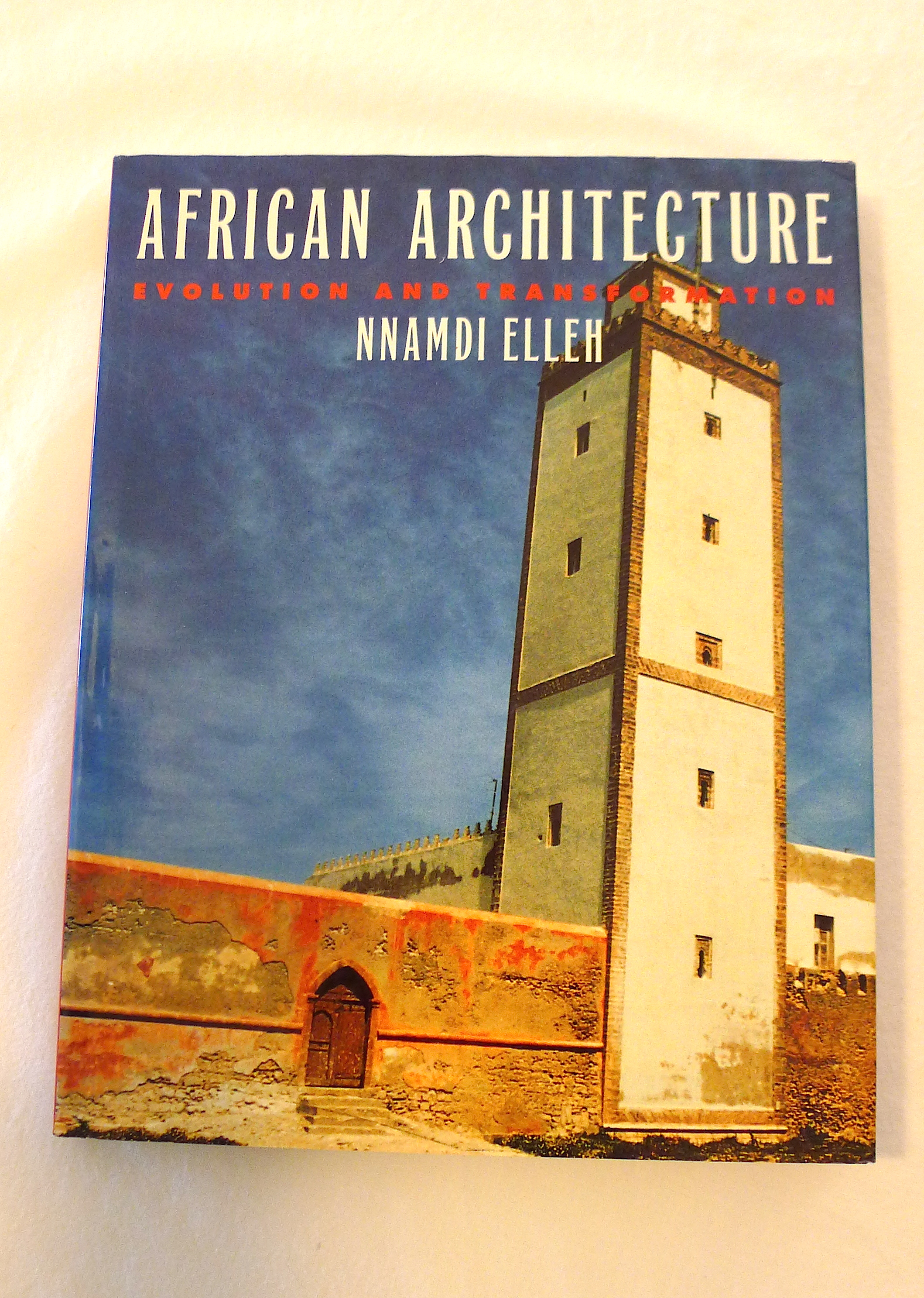

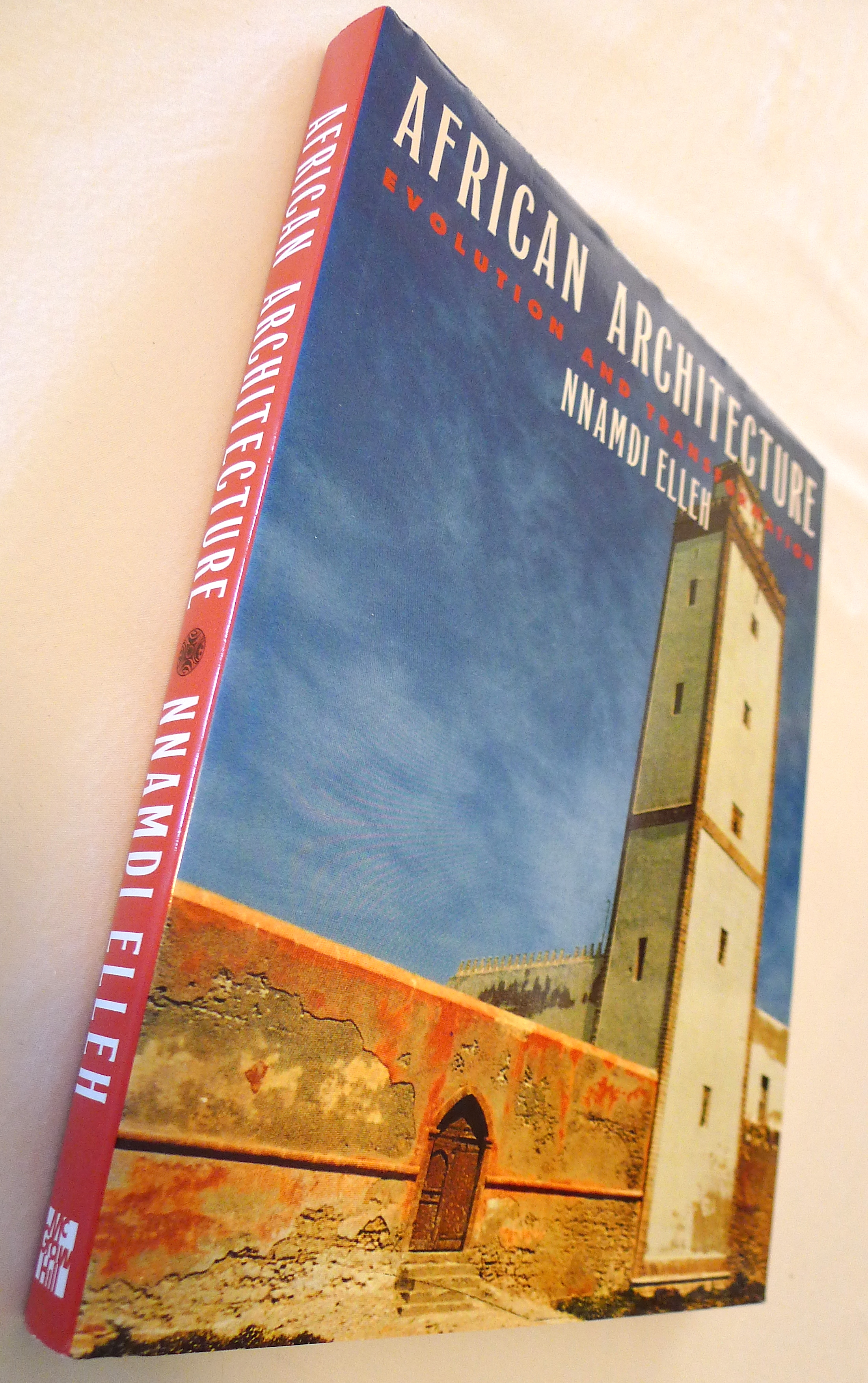

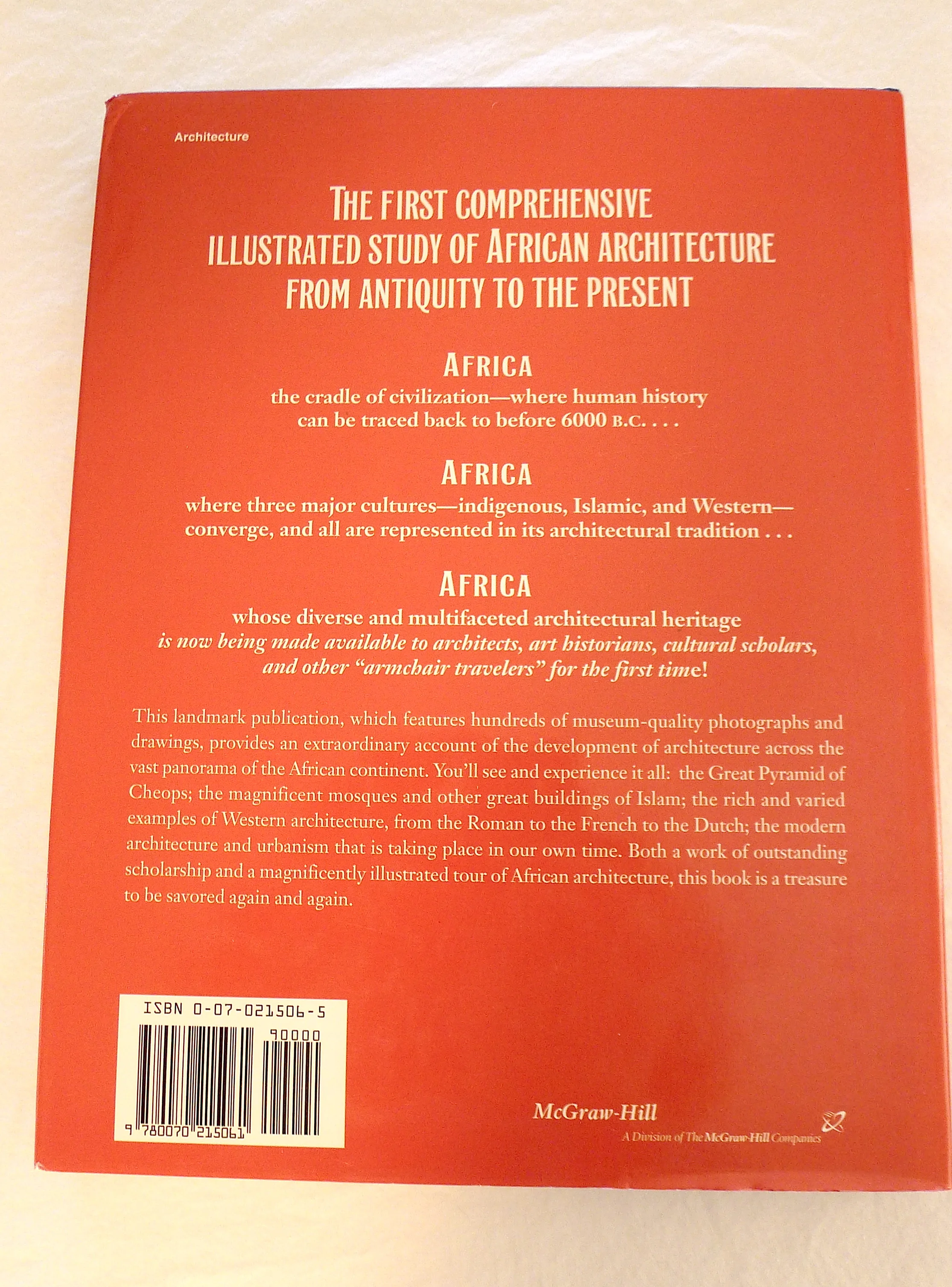

HISTORY OF AFRICAN ARCHITECTURE
8 1/2 x 11 Vertical
400 page text + ends + hard cover + dust jacket
Cover: Arlin, 1cx0c PMS 280U over 3mm boards + Matte Gold foil stamping on spine only + Blue & White head and tail bands
Ends: 140 gsm Woodfree, 1cx1c PMS 277U
Text: 90 gsm Gloss Art, 4cx4c
D.J.: 128 gsm Gloss Art, 4cx0c + Gloss P.P. Lamination
Section sewn, square backed with head & tail bands
Packed into export cartons and palletized
CIF: Oakland
All your details about this house and your projects with them.

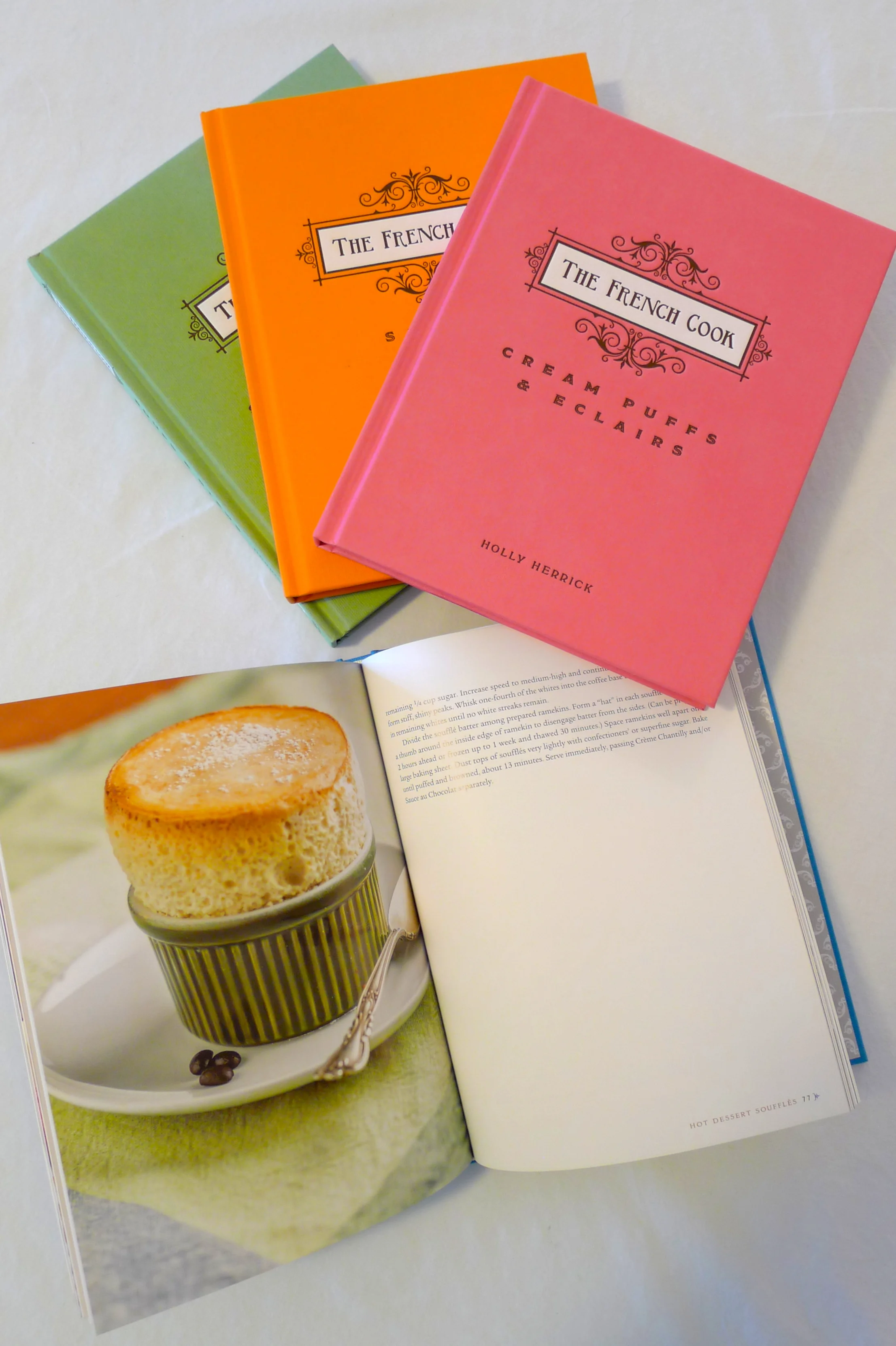

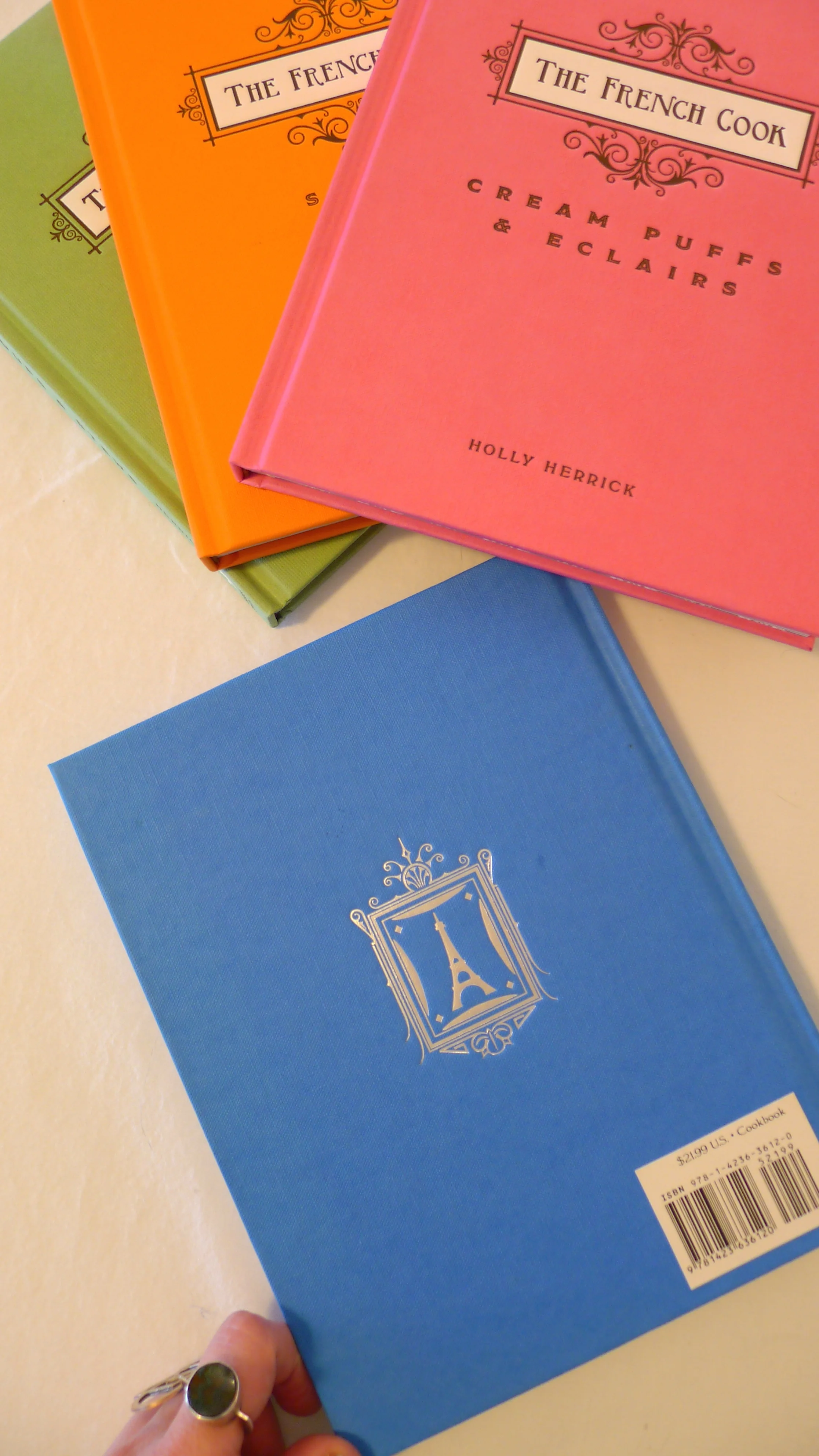

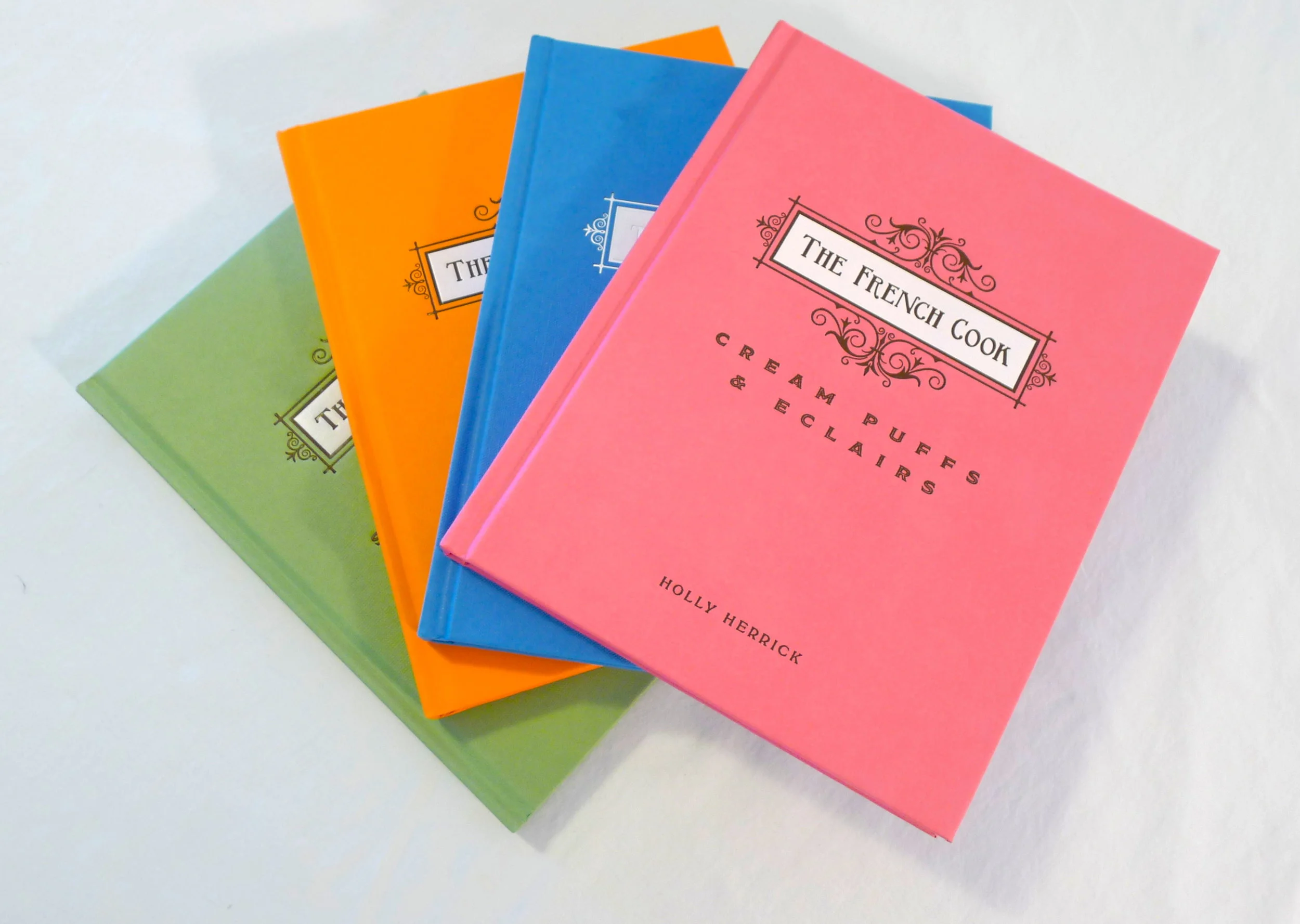

FRENCH COOKBOOK SERIES
128pp Text + 2x4pp Ends + Case
9"(H) x 7"(W) (Portrait)
Text: 140gsm Matt Art paper, 4c x 4c
Ends: 140gsm Woodfree, 1c x 1c PMS
Case: plain (no printing) + 2c Pantone 175C (brown) and Paper (white) foil stamping on front (notexceed 25 sq inches) and spine + deep debossing on brown foil on 120gsm Rainbow Buckram 127, color K1 Meadow.
Board: 3mm Greyboard
Casebound, section sewn in 12pp, separate ends, fully cased with Rainbow over board,square back, H/T band GF263 (rich chocolate brown solid), Bar code sticker on back cover, individual shrink-wrapped.
Packing Packed 24cps in export cartons and palletized
Delivery DAP + custom clearance

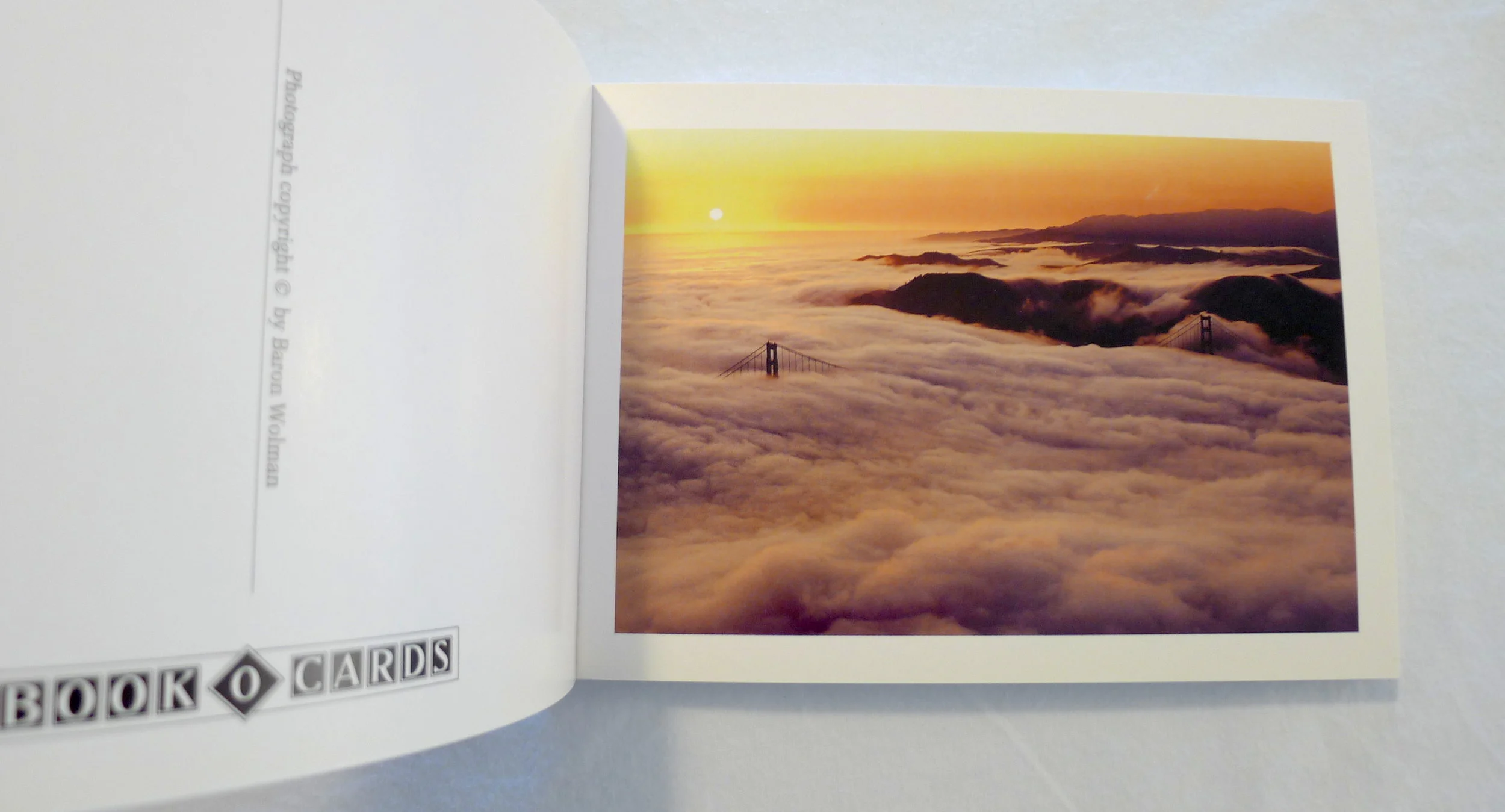

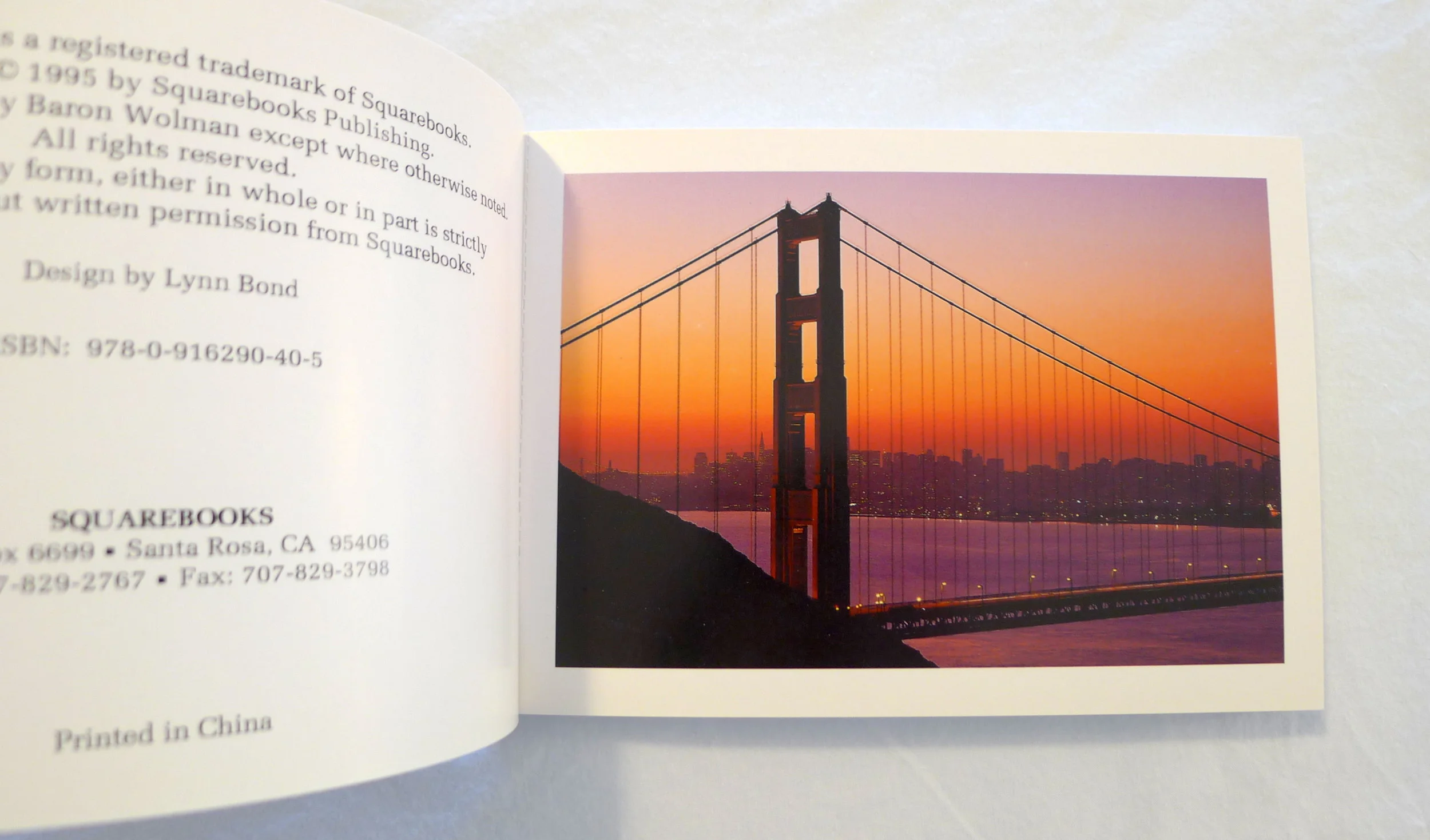

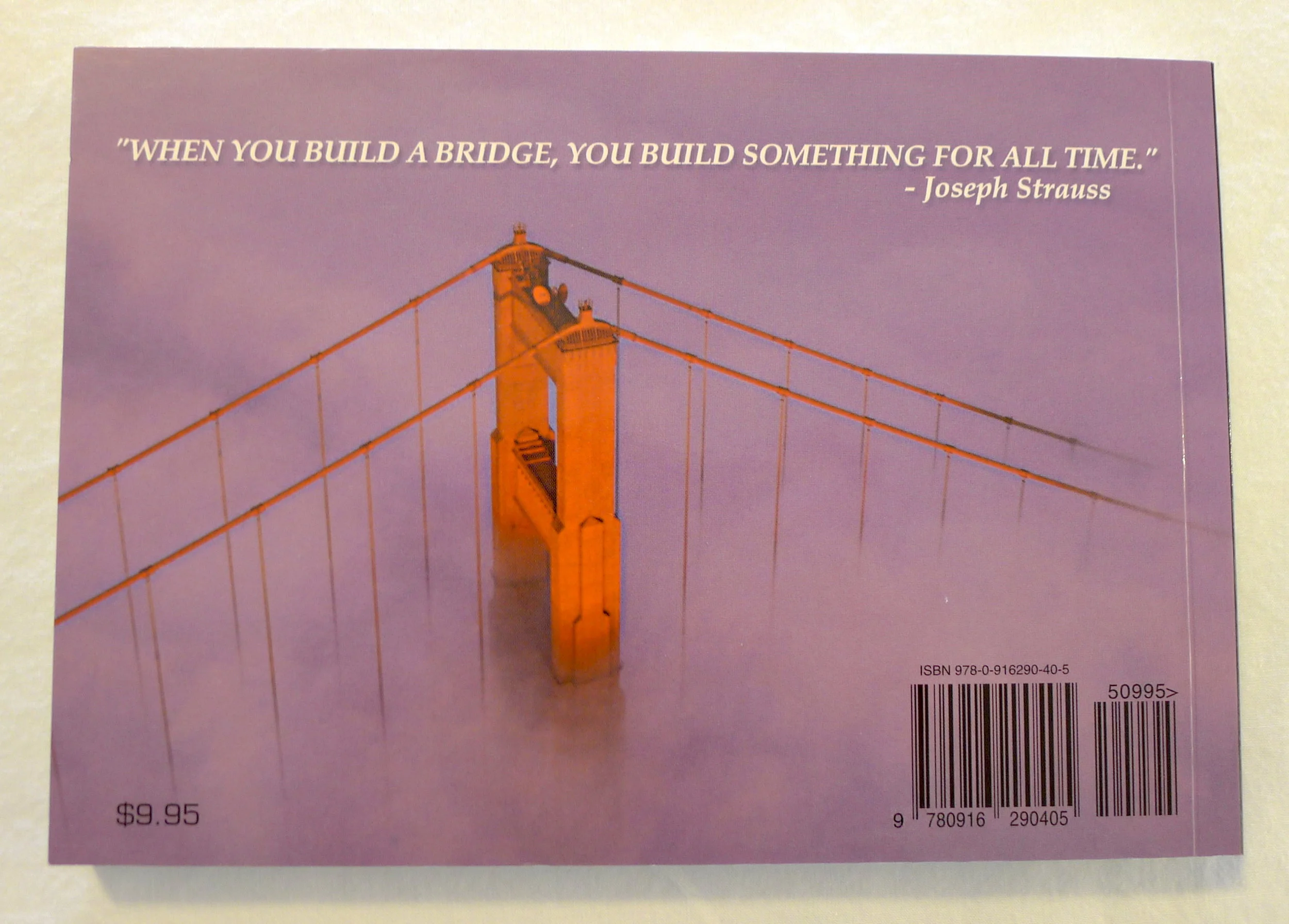

Golden Gate Bridge Postcard Books
6 7/8 x 4 3/4,” Horizontal
24 leaves with 1 perf. each (48pp text), + 4pp cover
New 4-color cover + 3 black text changes (price to come)
Cover: 350 gsm Gloss Art, 4c x 0c + P.P. Lamination
Text: 300 gsm gloss art, 4c x 1c + full gloss varnish on 4-color sides
Perfect binding on 4 3/4” + 1 perf each leaf + shrink wrap in 5s.
100 copies per export cartons shrink-wrapped pallets
CIF: Oakland

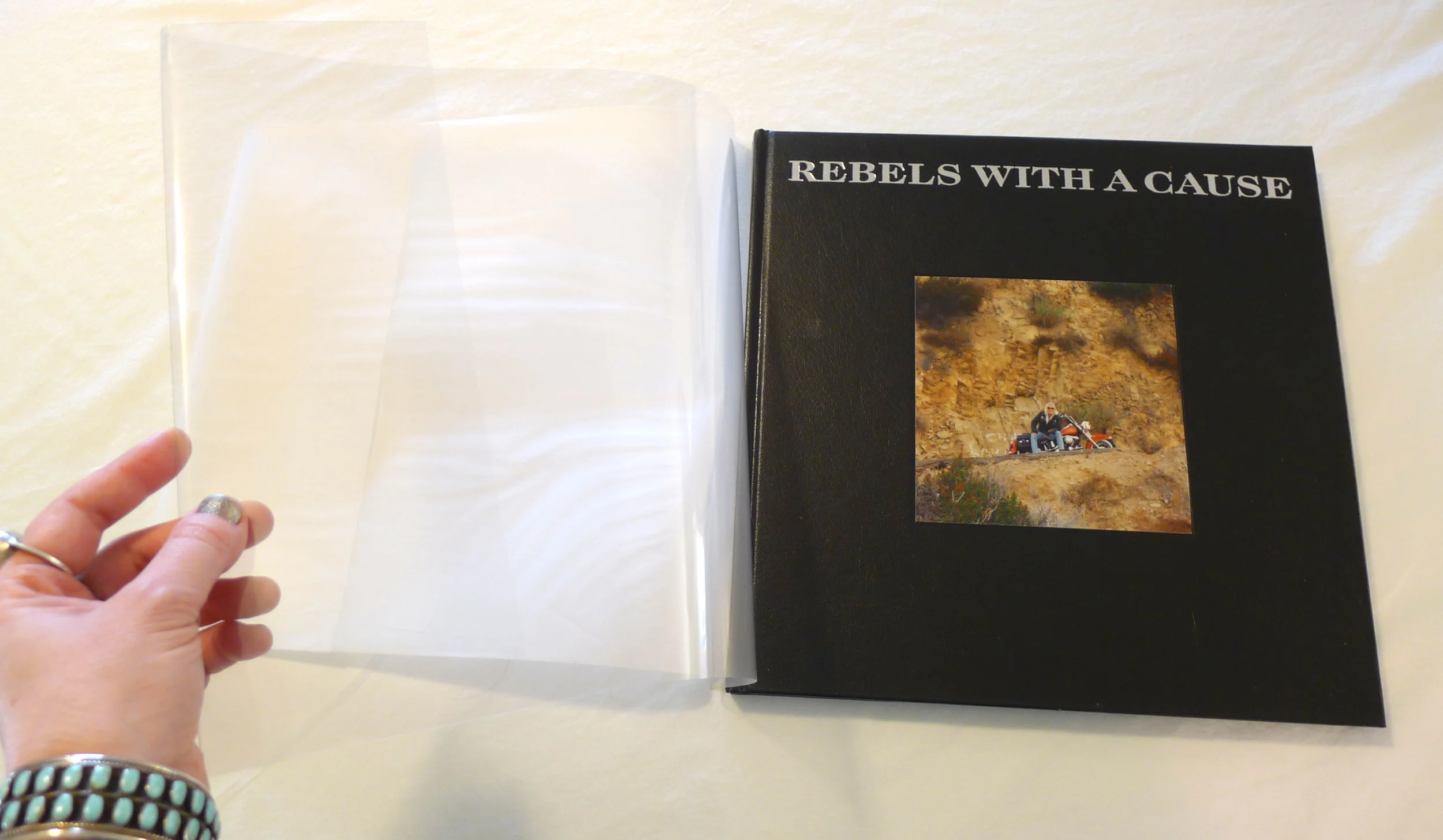

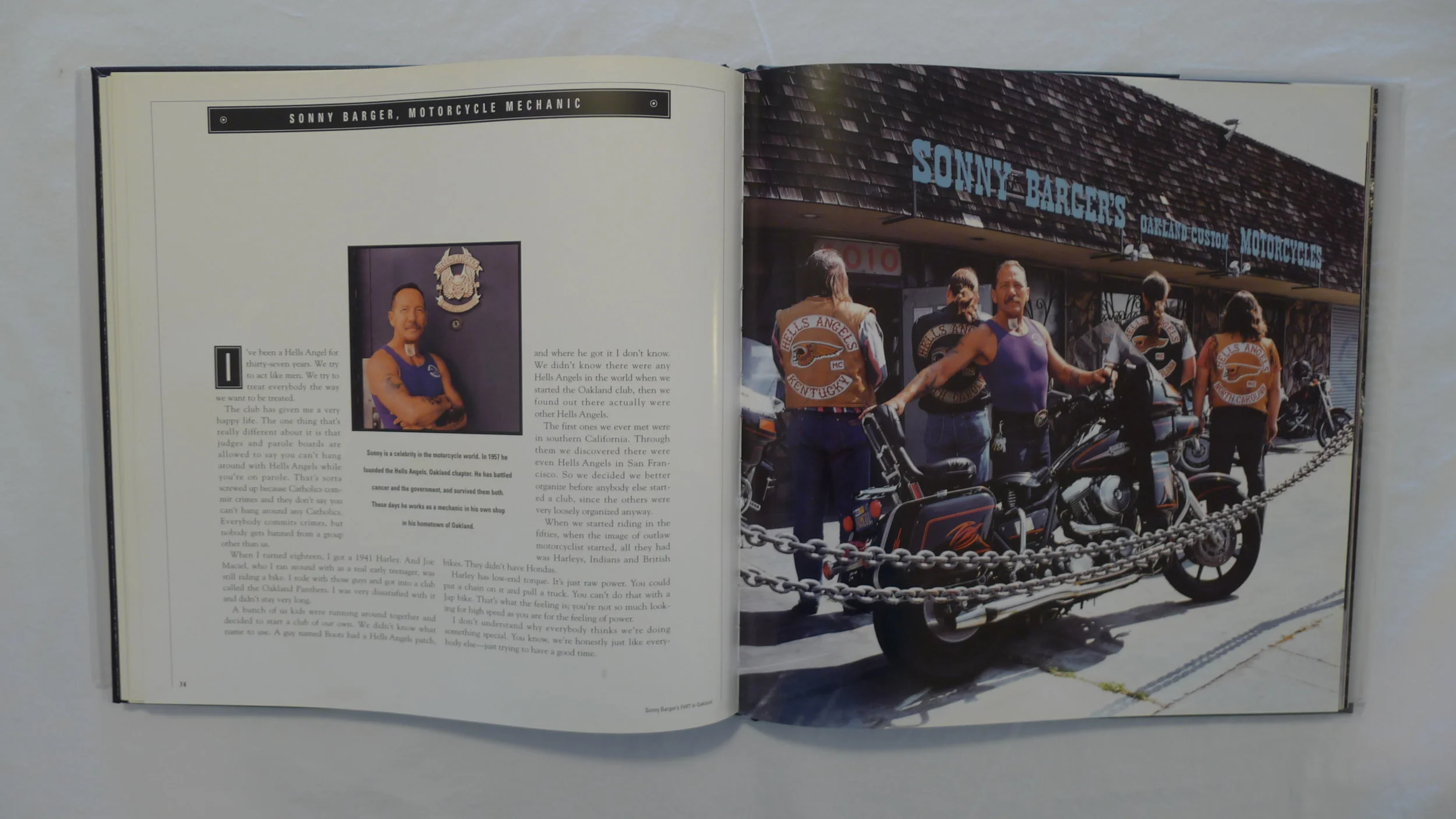

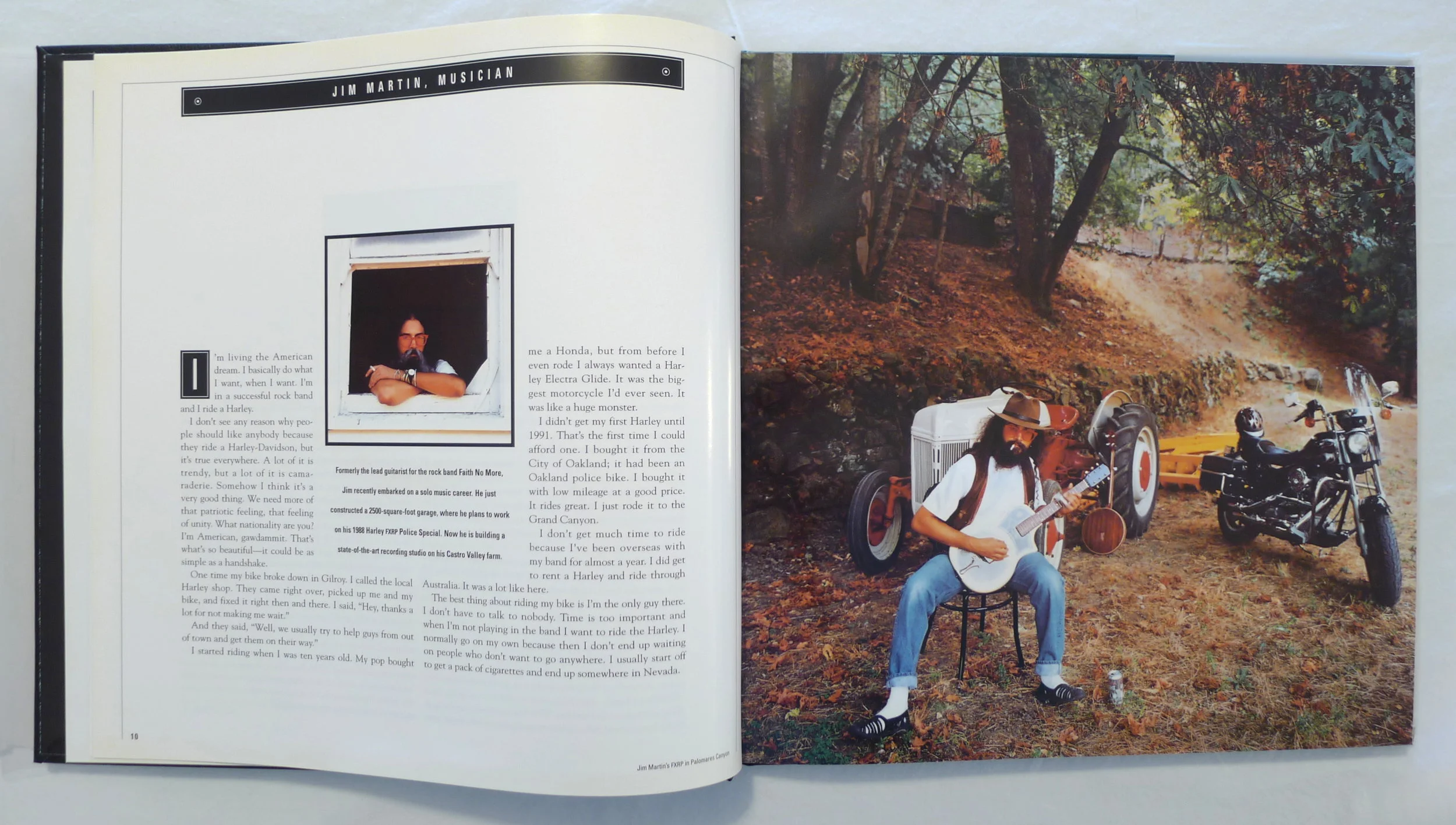

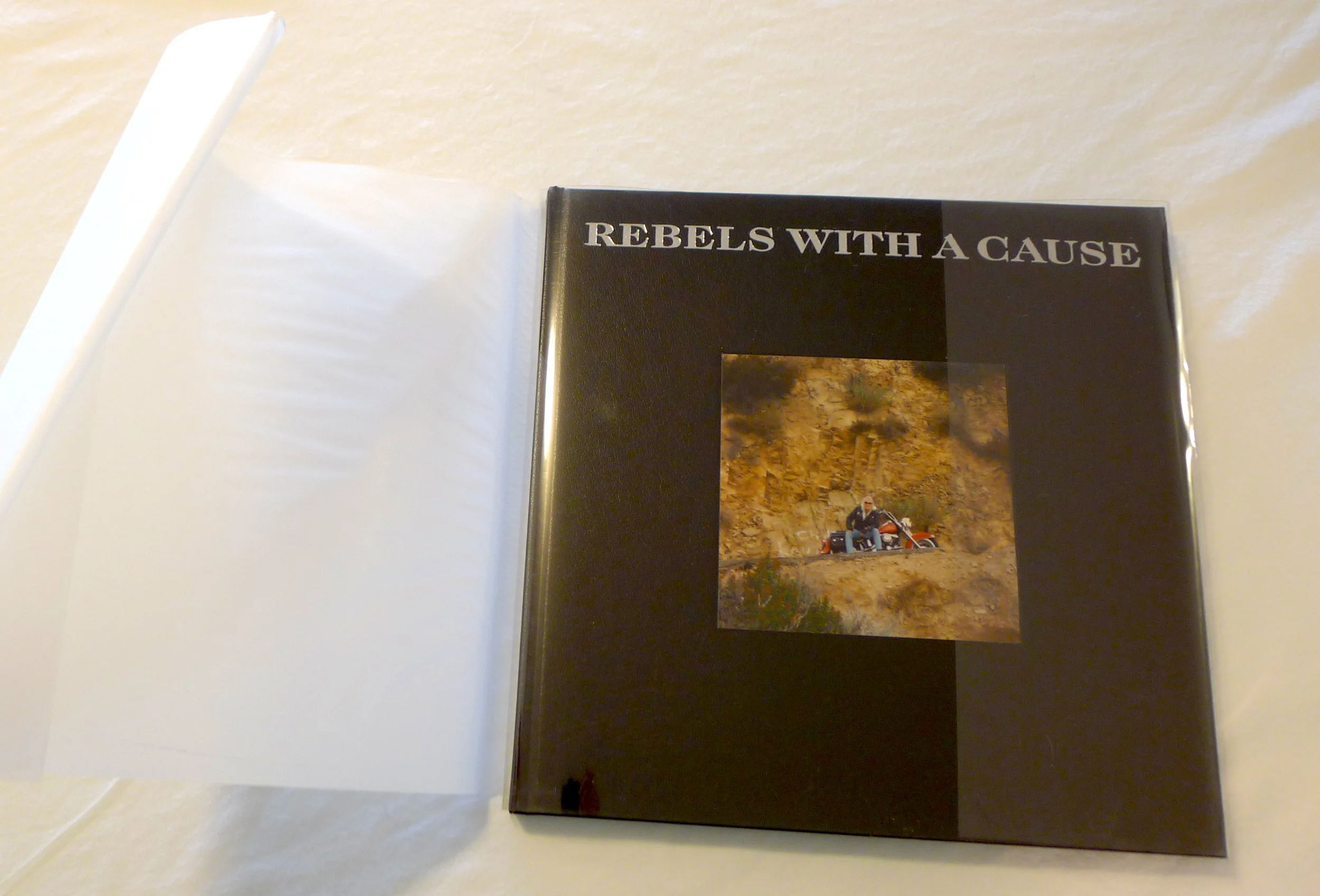

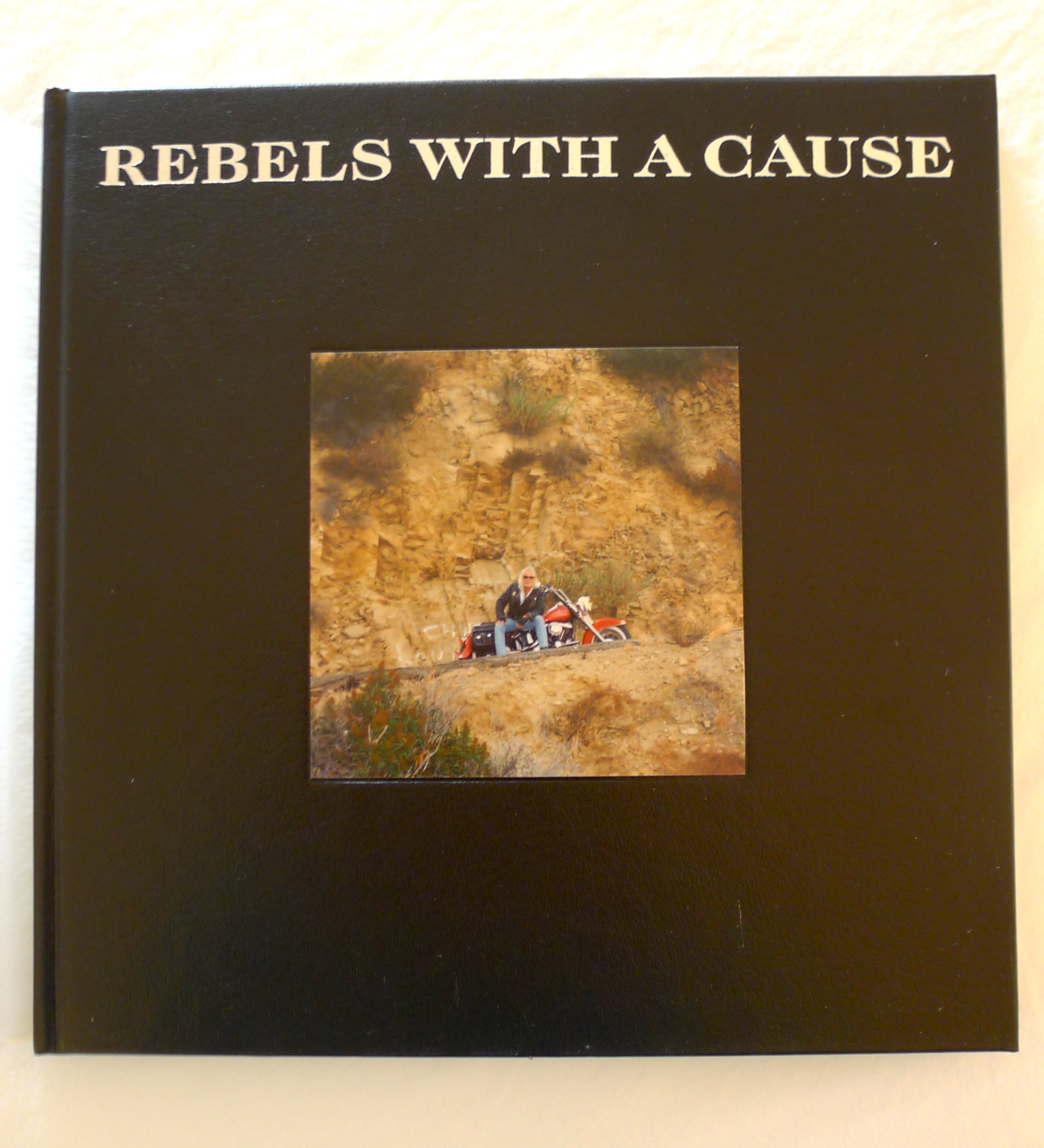

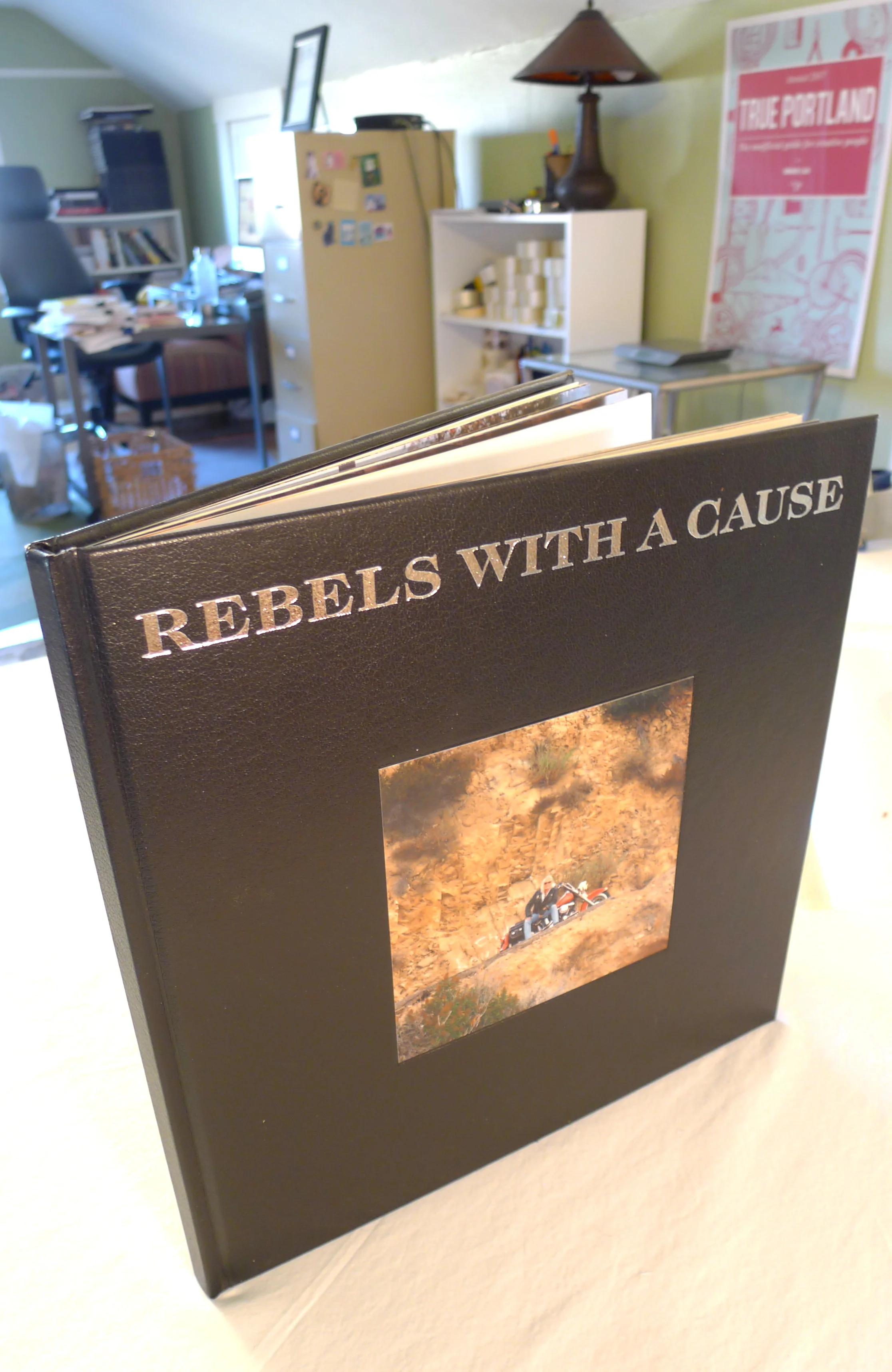

Harley Book
11.25" x 11.25"
136pp + 8 page ends + hard cover + dust jacket
Leather Bound Hard copies w/cloth + Soft copies w/4.5" flaps
Hard Cover: 136pp + 8 page ends + leather-bound hard cover
Soft Cover: 136pp + 4 pp soft cover with 4/5" flaps
Text : 150 gsm Lumiart gloss art, 4c x 4c
Soft Cover : 375 gsm C1S Artboard 4c x 0c with flaps + P.P. Lamination
Hard cover : Leather over 3mm grey board, foil stamping
Hard Cover: Black T-Saifu cloth over 3mm boards w/silver foil stamping a 6" square on front
Ends: 140 gsm Woodfree, 1cx1c Black
Jacket on cloth covers only: 128 gsm Gloss Art, 4cx0c + P.P. Lamination
SC: Section sewn w/cover drawn on w/4.5" flaps and trimmed to size.
HC's: Section sewn with separate ends fully cased with A) leather and B) cloth over board, head and tail bands, square backed. Cloth covers to be shrink wrapped individually .
In export cartons, palletized
CIF Oakland

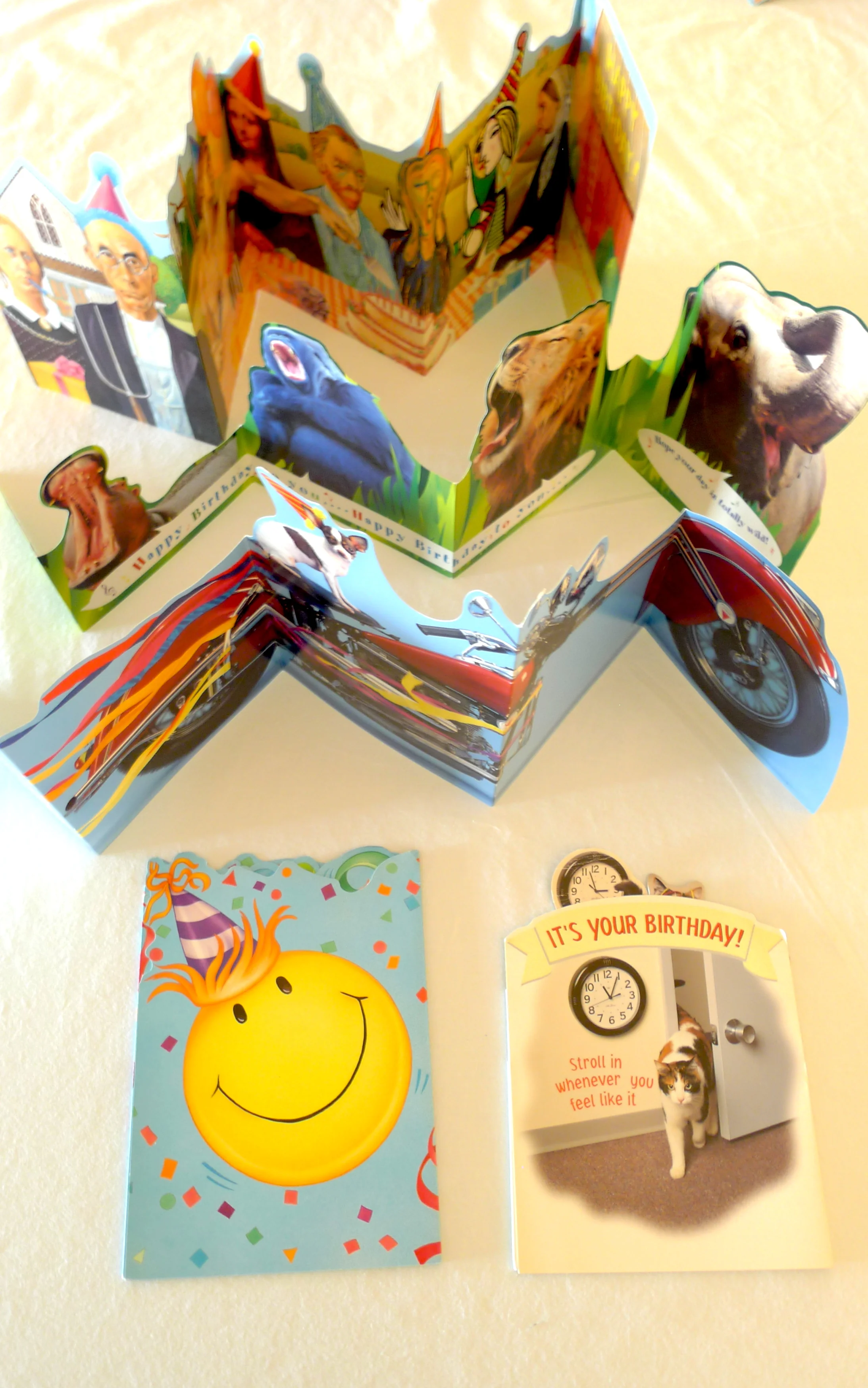

STREAMERS
5 x 7 folded, 25 x 7 flat
12 pt. White C2S, 4cx4c + flood aqueous
Fold 5 panels - 4 folds, each box has one title of 100 cards per 2, with cardboard in middle divider, 200 cards per box
Die-cut
Export cartons palletized.
